Intel X79平台雖然於桌上型電腦定位成旗艦等級,
但也有不少喜歡中小體積主機的消費者也想要享受旗艦級的性能。
ASRock華擎針對有中小體積需求的消費者推出X79 Extreme4-M主機板,
在micro-ATX的有限空間內提供滿足LGA 2011 CPU運作應有的平台。
包裝與配件
黑色系髮絲紋質感的紙盒
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/x.jpg
背面則是規格與特色說明
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/03.jpg
只要使用支援PCI-E 3.0傳輸頻寬的CPU,華擎的主機板在佈線上一樣可以完整支援8.0GT/s的頻寬
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/04.jpg
ASRock獨家XFast專屬特色功能新成員 - XFast RAM
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/05.jpg
其他林林總總的特色功能
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/06.jpg

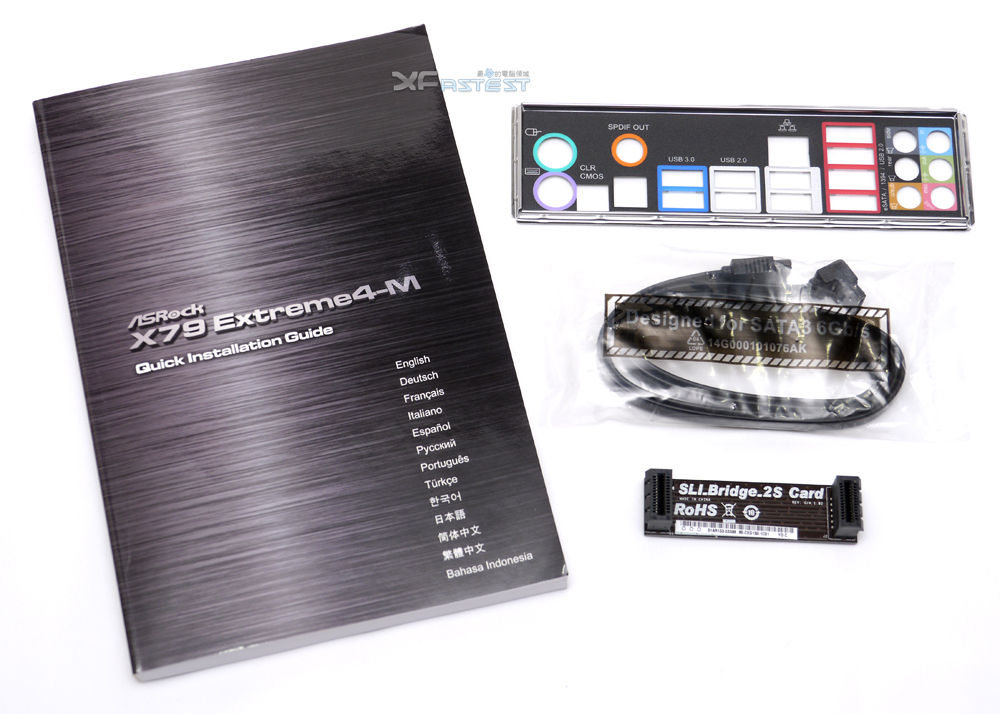

使用說明書、後I/O檔板、2條SATA 6Gb/s傳輸線、2-Way SLI橋接器
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/07.jpg
驅動軟體光碟與軟體專屬說明書
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/08.jpg
主機板本體外觀

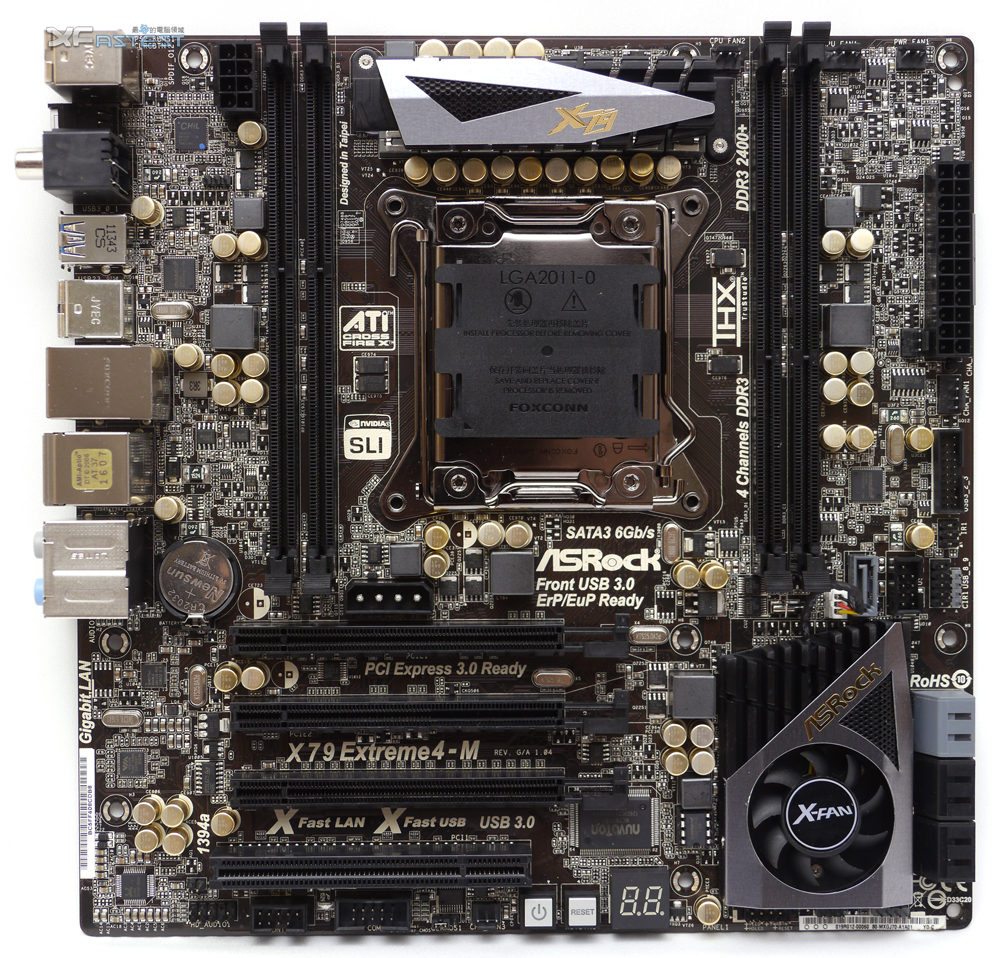

正面黑金的色調設計
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/09.jpg
整張板子都採用全日製金色電容

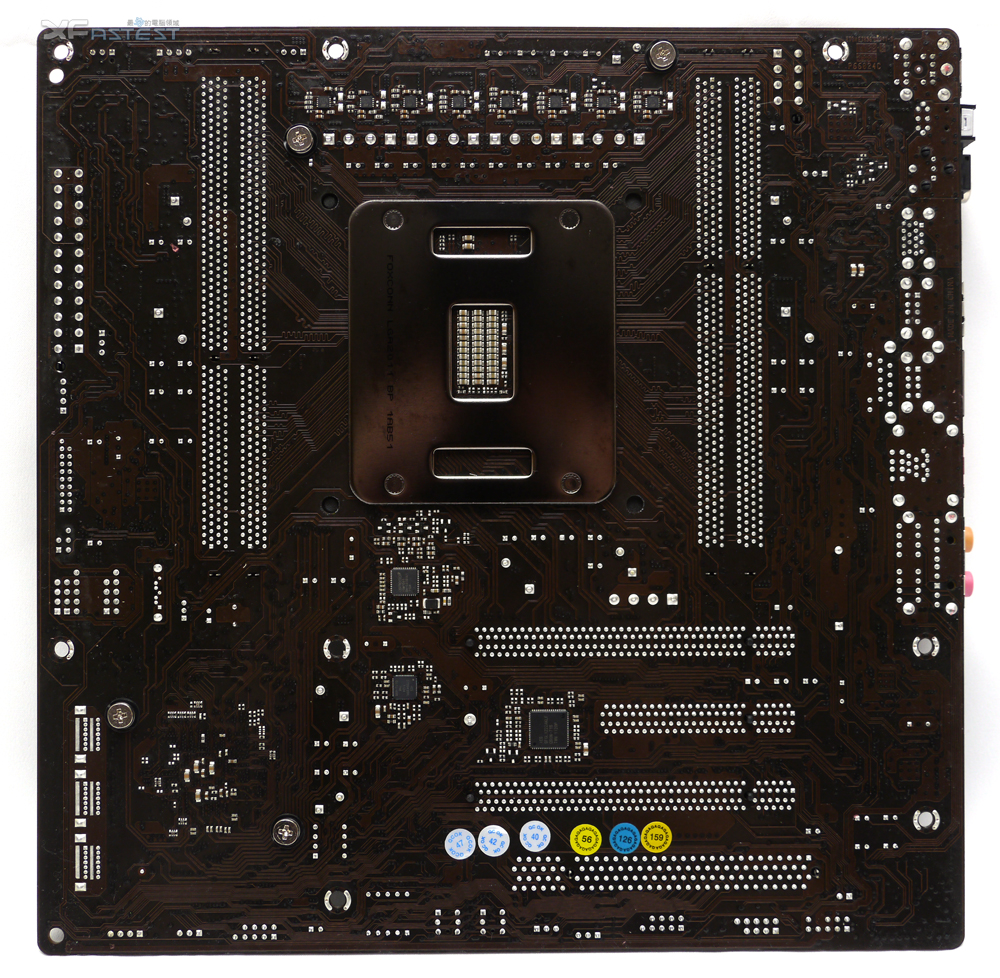

背面可以見部分晶片
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/10.jpg

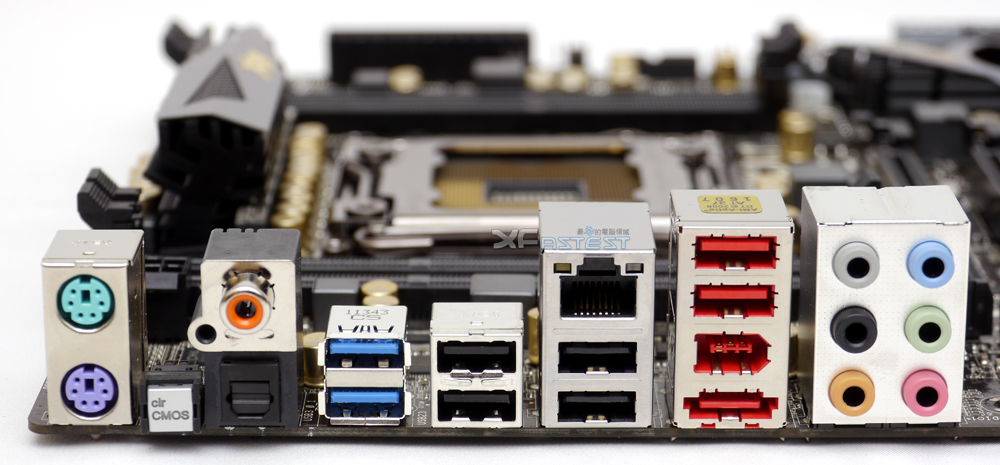

I/O Port
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/11.jpg
鍵鼠PS/2各1個、clr CMOS按鈕、同軸/光纖 S/PDIF數位音源輸出各1個、2個USB 3.0、6個USB 2.0、
1個RJ-45網路孔、1個IEEE-1394a、1個e-SATA、1組7.1聲道HD-Audio類比音源

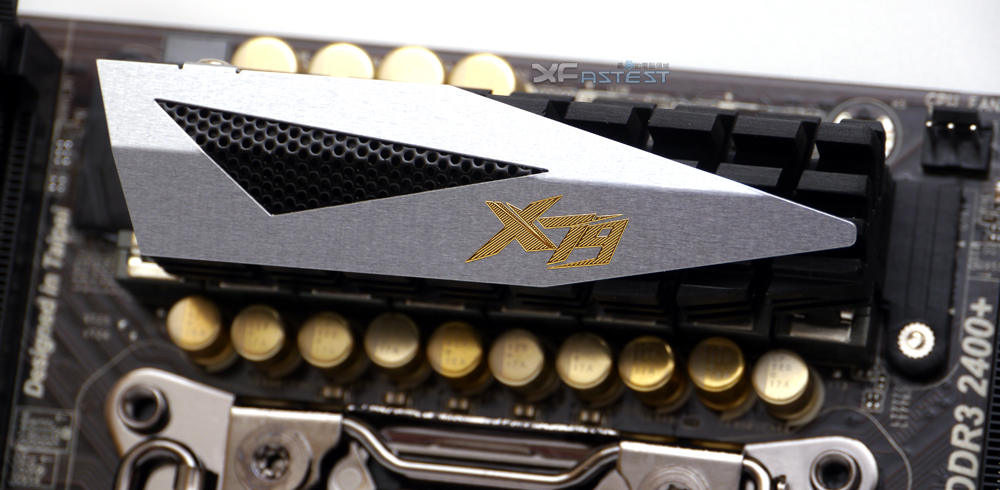

MOSFET散熱片
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/12.jpg

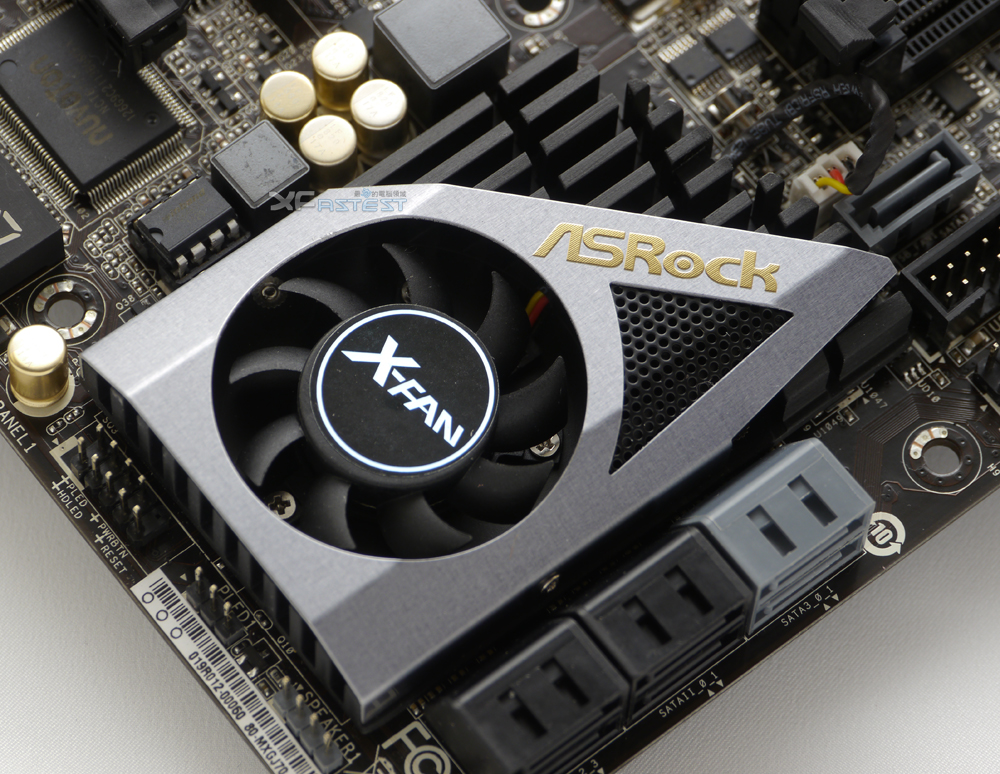

南橋PCH晶片散熱片
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/13.jpg
附帶X-Fan加強散熱效率

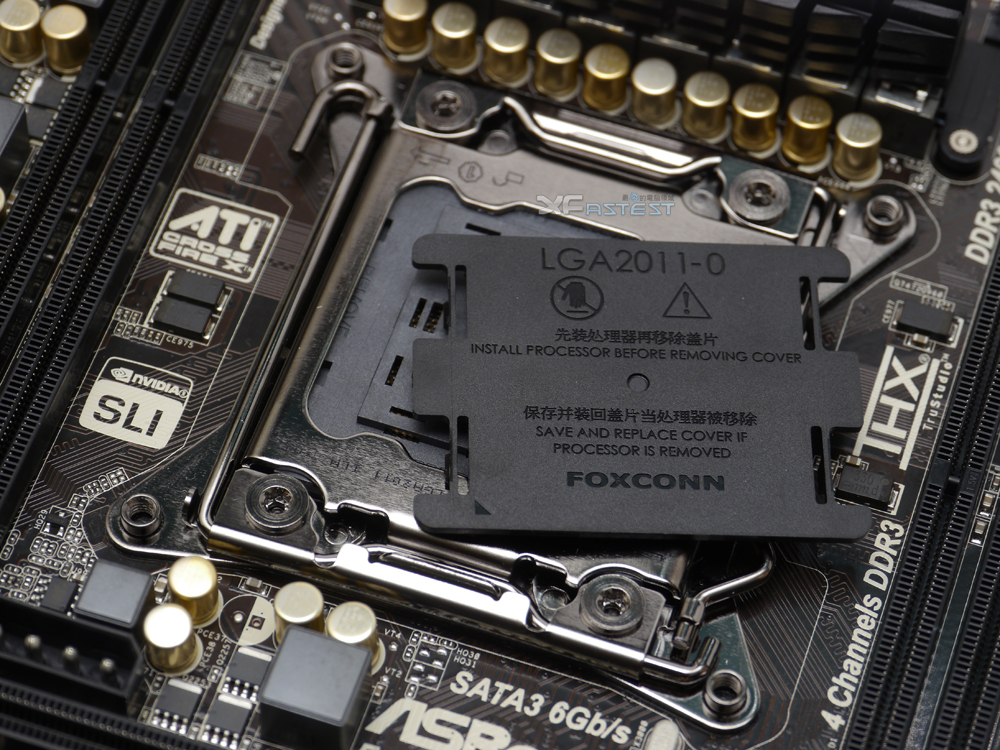

CPU Socket使用富士康製品
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/14.jpg
這次有兩層保護蓋

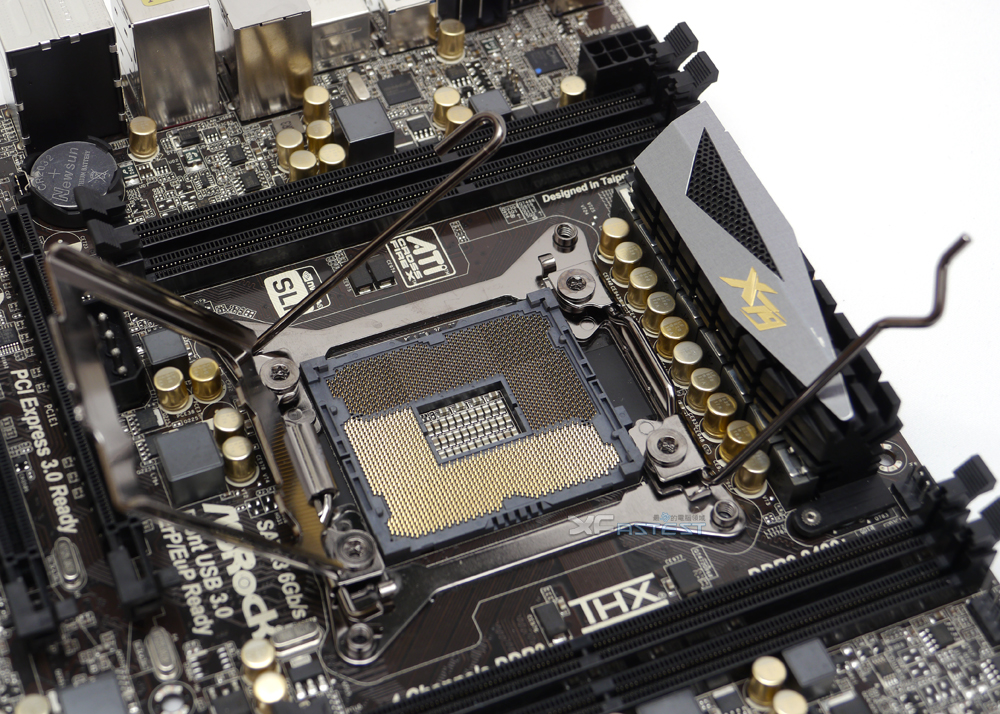

LGA 2011(Socket R)全貌
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/15.jpg
使用兩組拉桿固定CPU本體

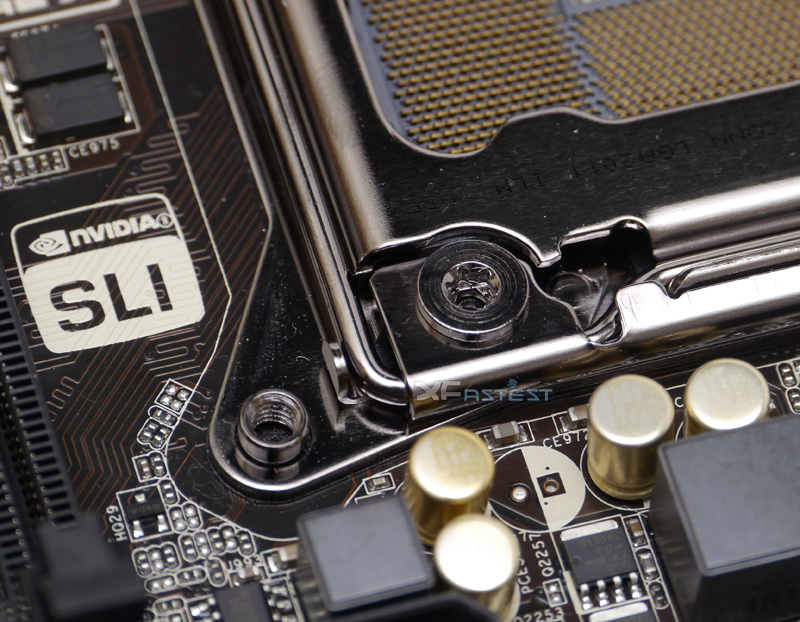

散熱器固定點
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/16.jpg
LGA 2011與LGA 1366散熱器固定點間距是一樣的,只是LGA 2011的Socket本體已經一塊附帶可以鎖螺絲固定散熱器的金屬板
主機板用料細節

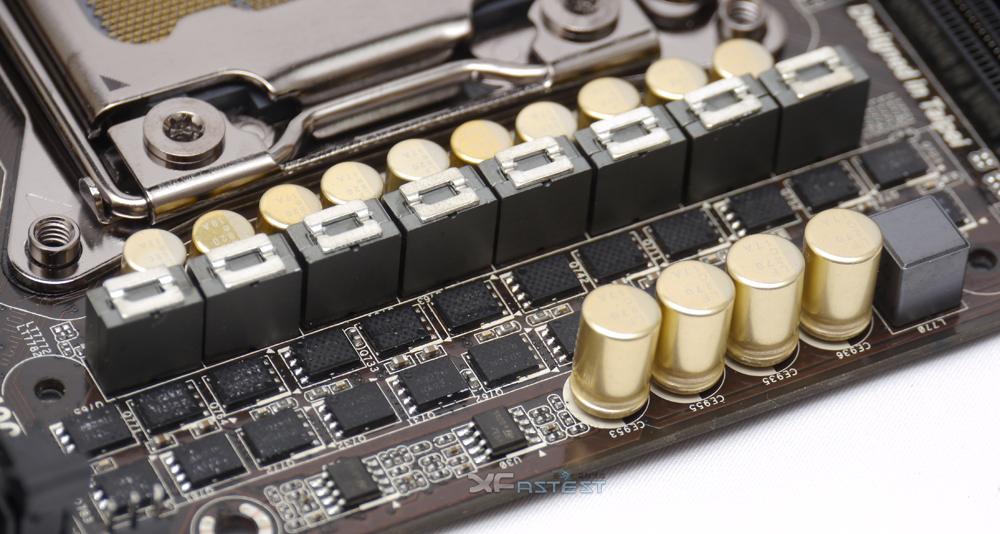

CPU供電採用數位V6+2相
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/17.jpg

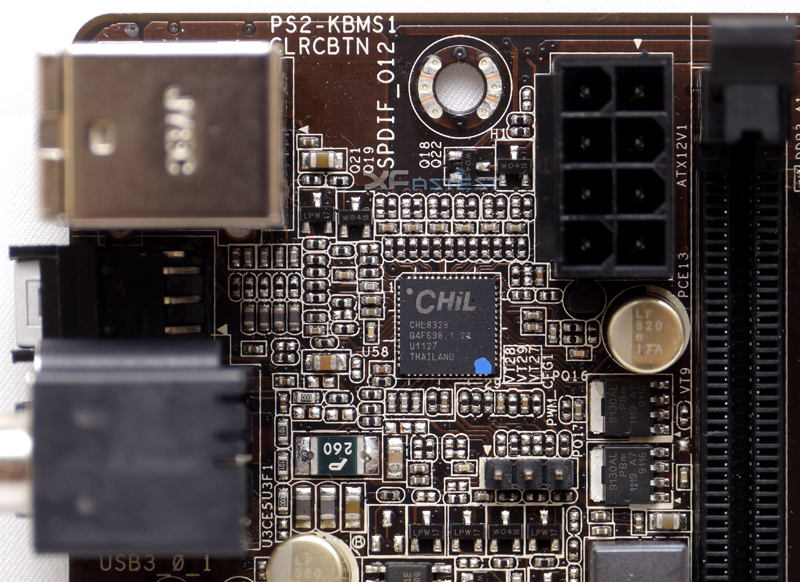

數位PWM主控晶片使用CHiL CHL8328
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/20.jpg

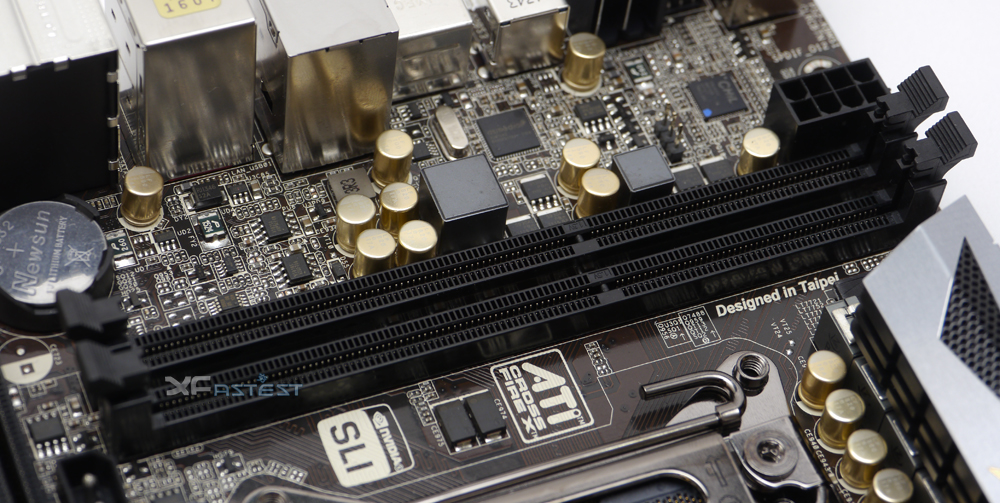

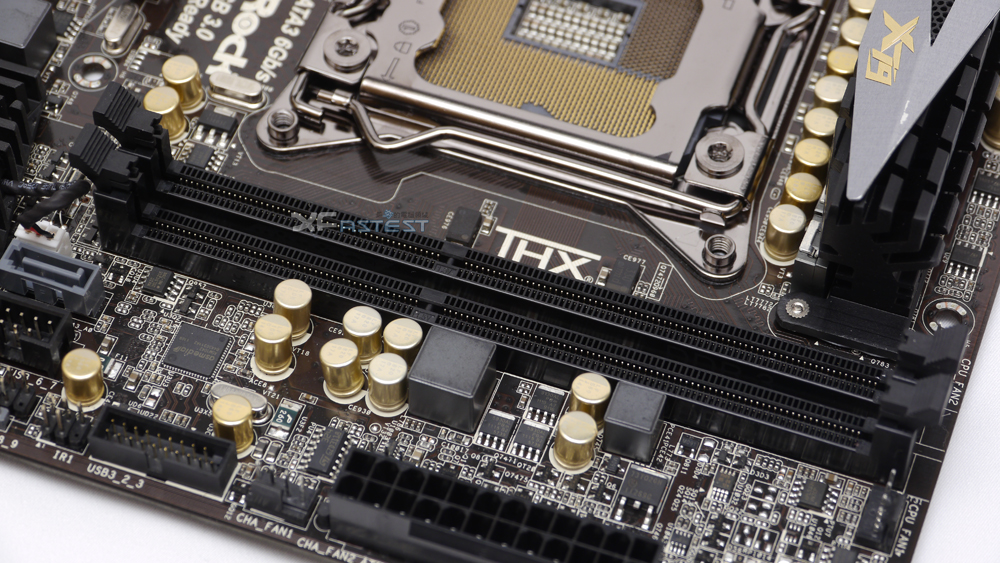

只有1組4通道的記憶體插槽分布於CPU兩側,都有各自的供電模組
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/18.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/19.jpg

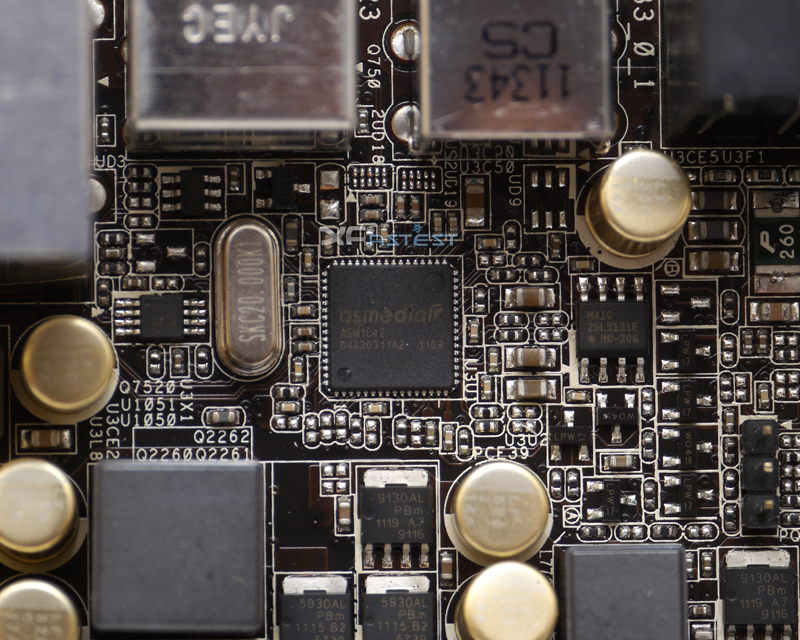

USB 3.0控制晶片採用asmedia ASM1042
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/21.jpg

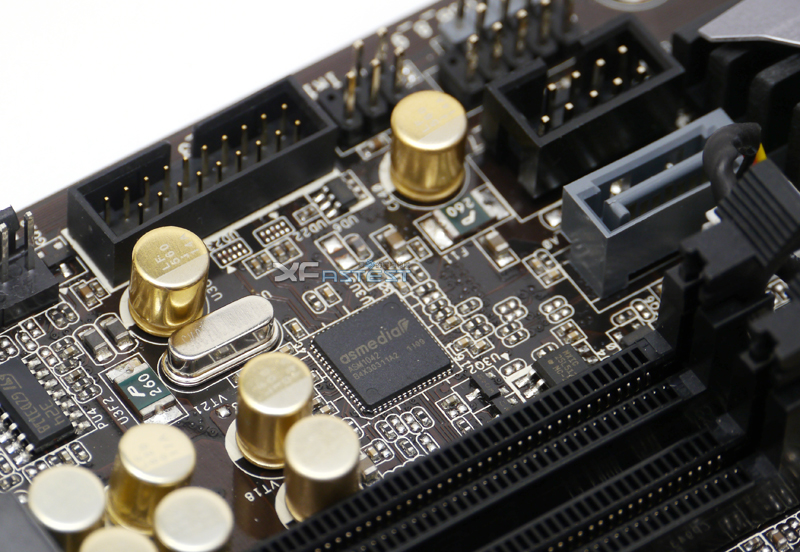

共兩顆,分別提供後I/O與前置面板內接使用
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/22.jpg

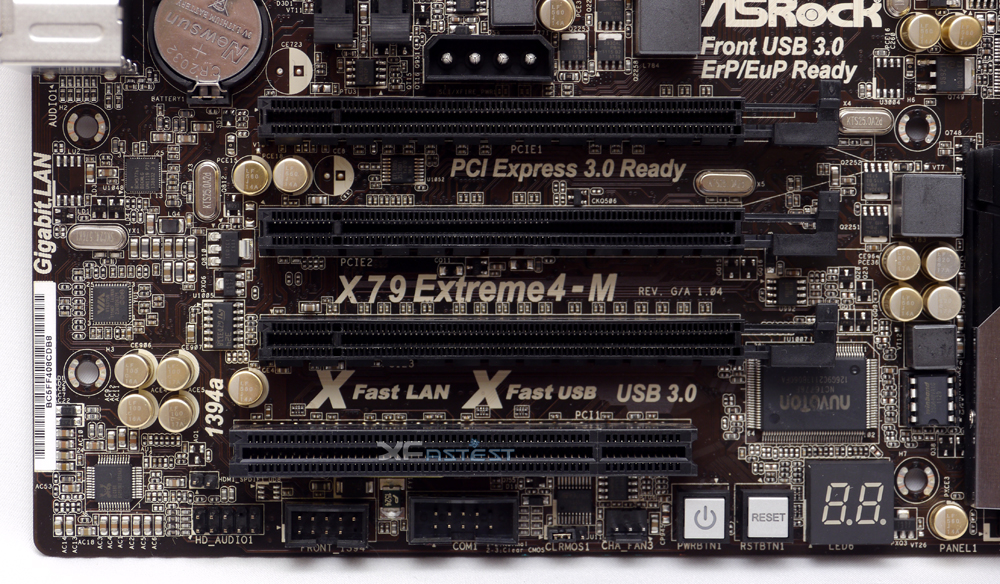

擴充卡插槽有3組PCI-E x16(中間那條只支援x8)、1組PCI
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/23.jpg
為了穩定多顯卡運作時的供電上方設有1個大4 Pin插座

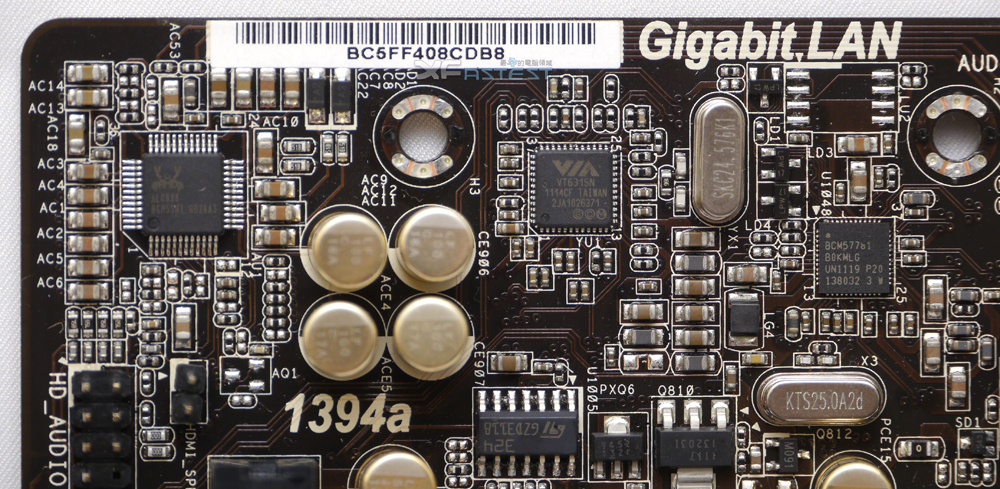

音效晶片使用Realtek ALC898,IEEE-1394a晶片使用VIA VT6315M、網路晶片使用Broadcom BCM57781
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/24.jpg

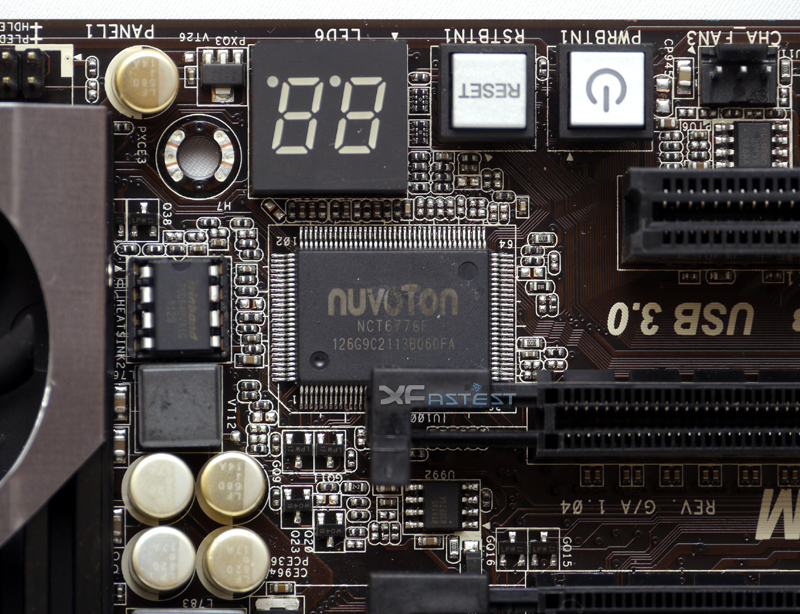

環境監控晶片使用nuvoTon NCT6776F
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/25.jpg

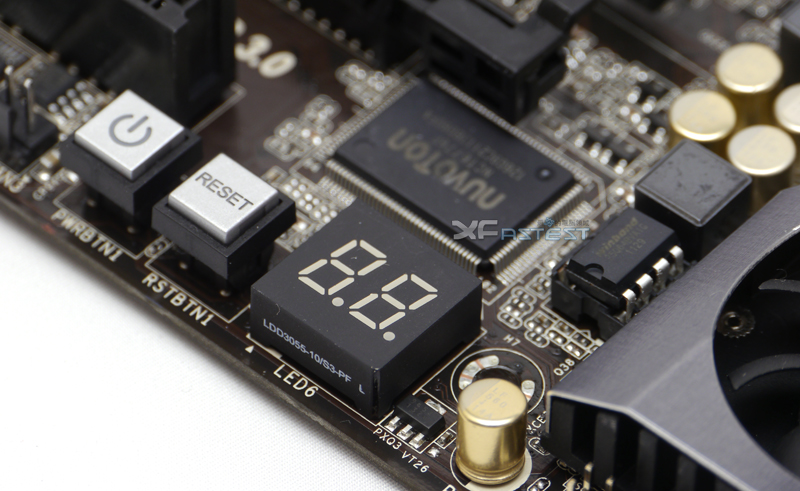

內建實體電源/Reset按鈕與Debug LED燈號
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/26.jpg

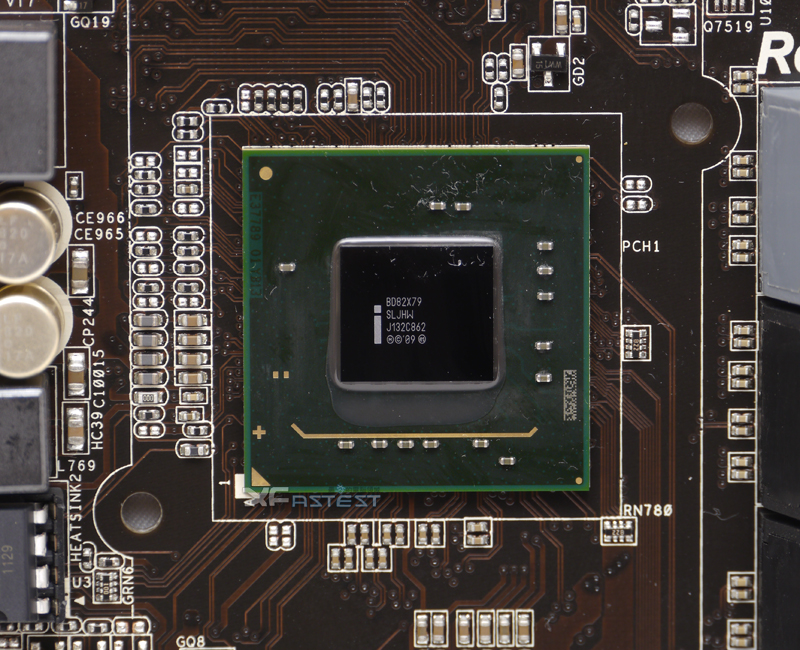

南橋PCH晶片本體
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/27.jpg

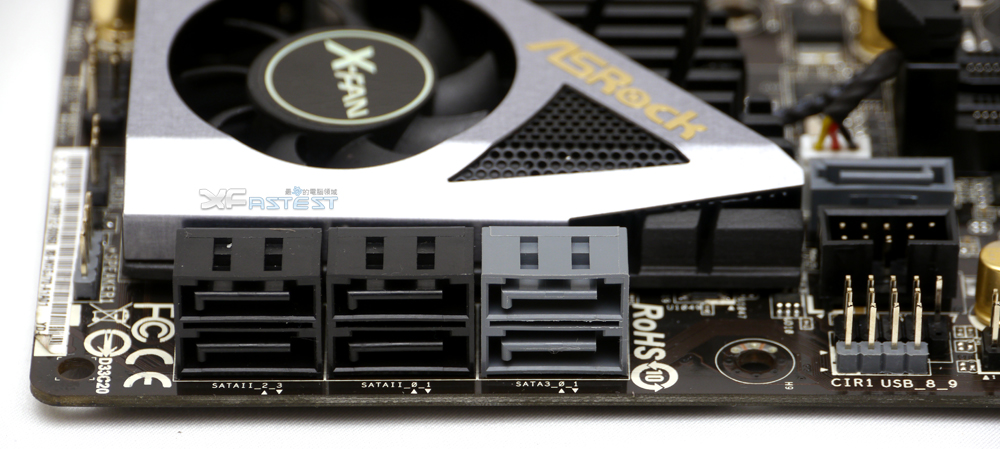

X79原生支援2個SATA 6Gb/s(灰色)與4個SATA 3Gb/s(黑色)
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/28.jpg
圖片右側的另一個灰色SATA Port也是6Gb/s,經由外接晶片

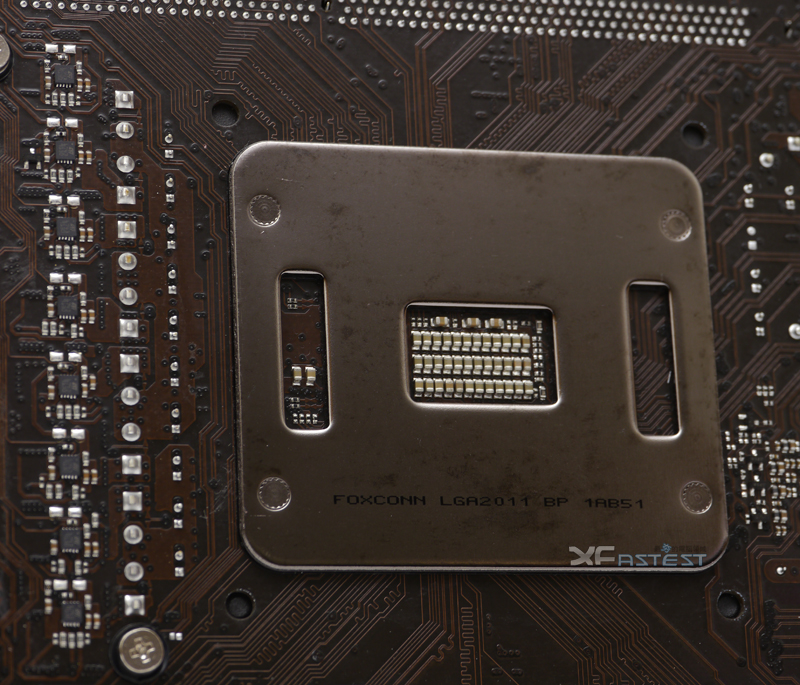

CPU Socket背板
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/29.jpg
圖片左側是部分的MOSFET供電元件
外接的SATA 6Gb/s控制晶片位於主機板背面,使用asmedia ASM1061
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/30.jpg
原廠散熱器安裝
為了應付LGA 2011 CPU的熱量,Intel打算在出貨時搭配一顆水冷散熱器,而這顆水冷散熱器碰巧和Antec KUHLER H2O 620/920同樣是是Asetek代工的
我們只要置換成適用於LGA 2011腳位CPU的散熱器扣具
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/31.jpg

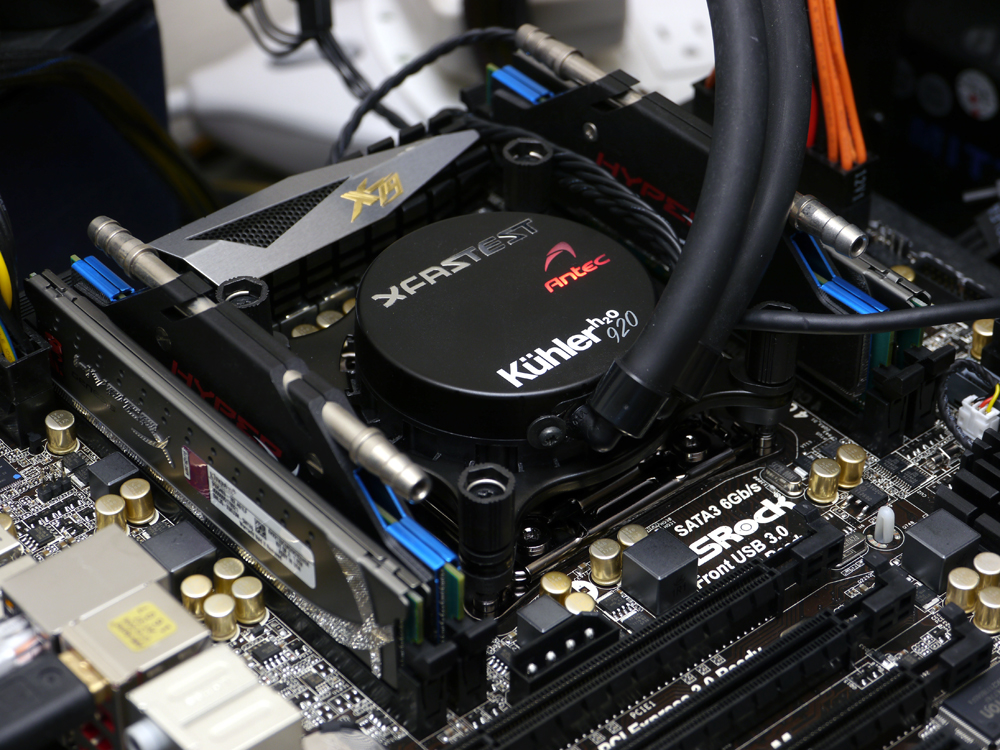

就可以安穩的裝上Antec KUHLER H2O 920開機囉!
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/32.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/33.jpg
UEFI BIOS介面
初始畫面列出基本的CPU與記憶體資訊
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-01.jpg

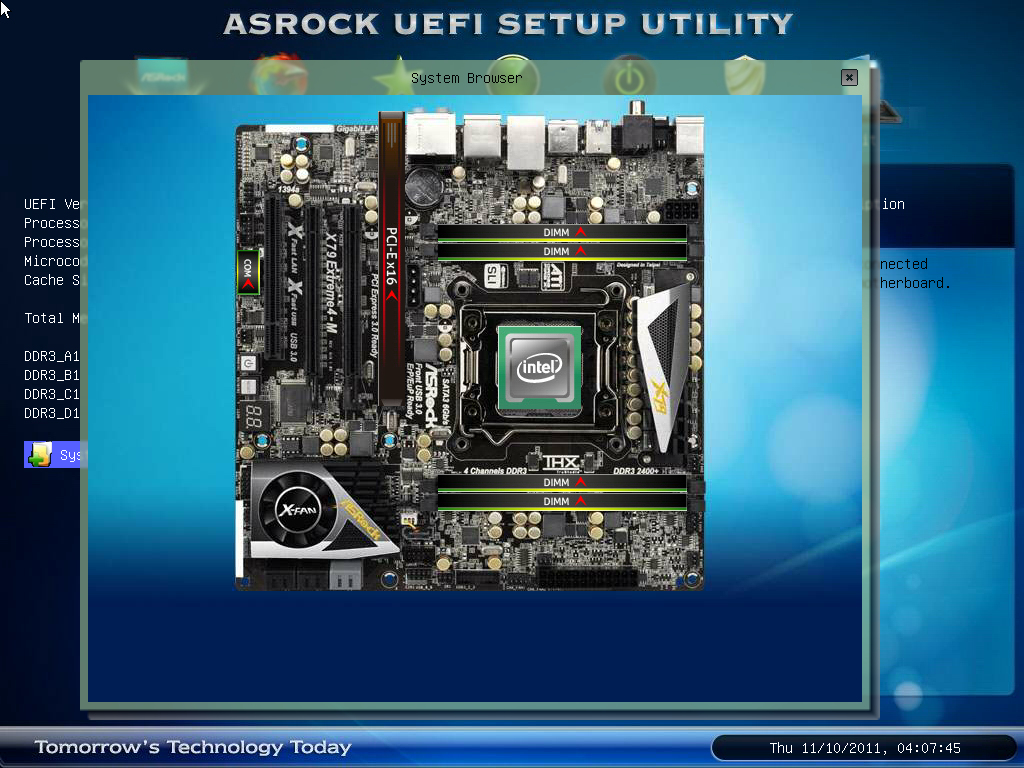

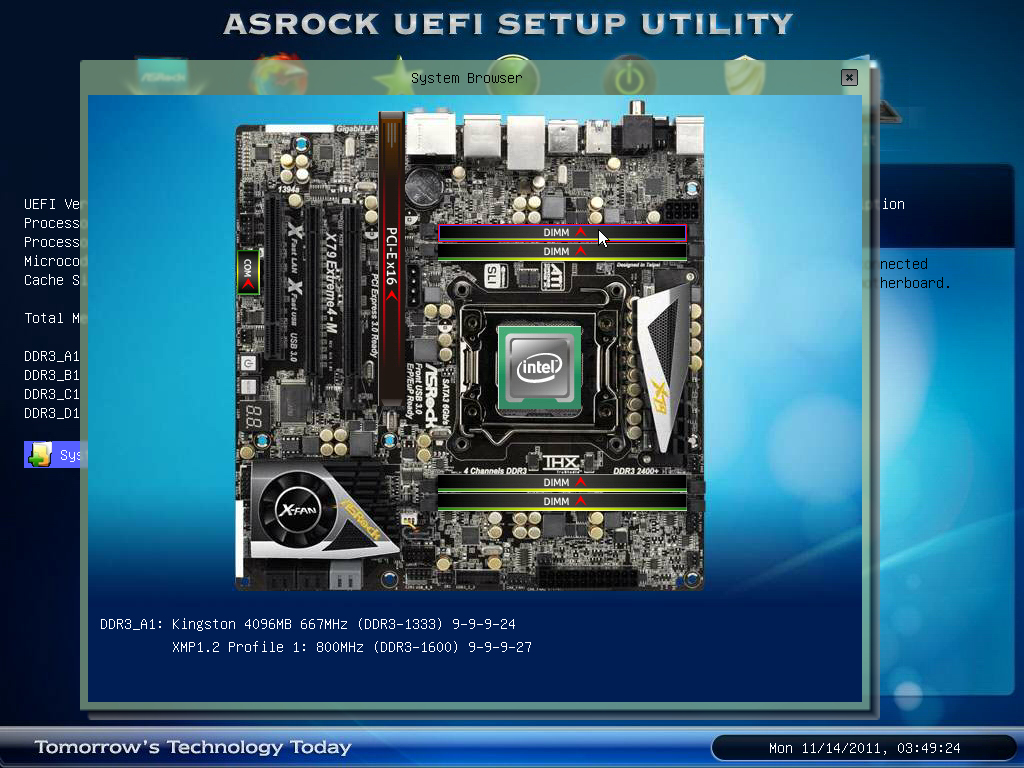

這次ASRock X79系列主機板導入的新功能"System Browser"
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-02.jpg

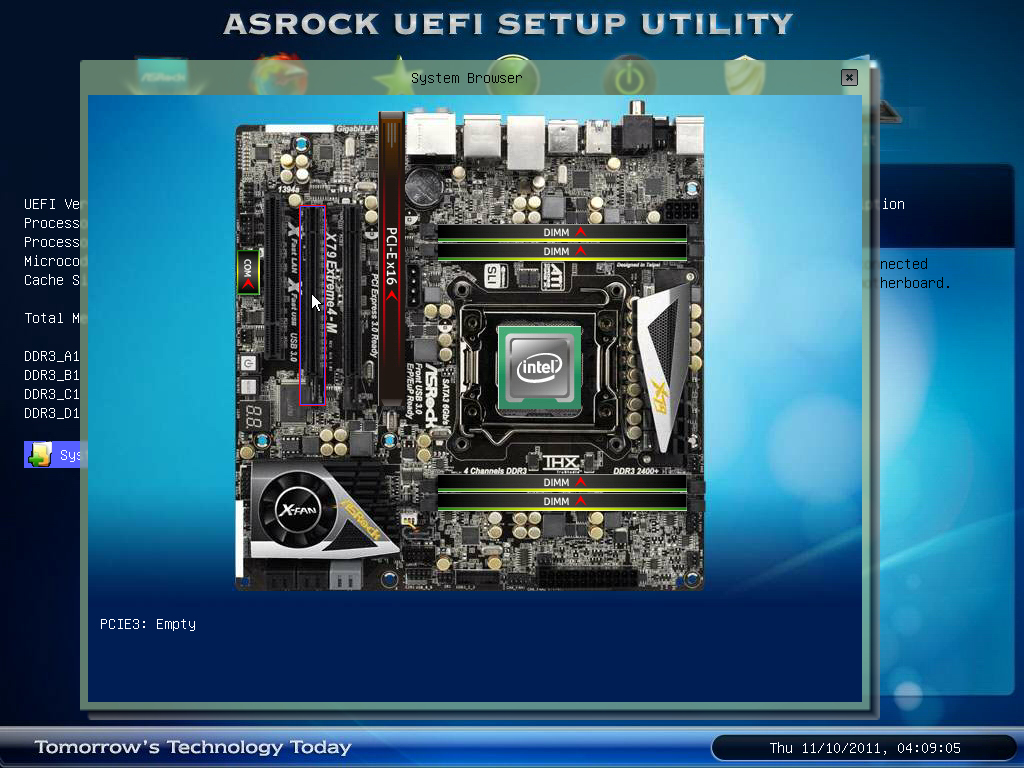

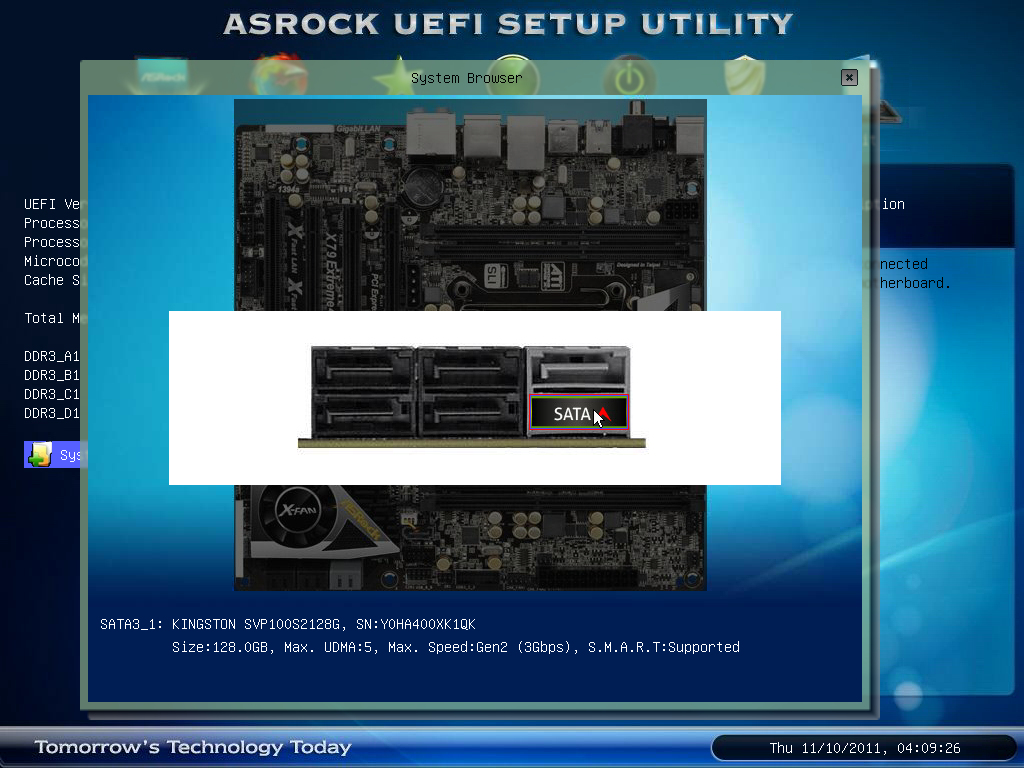

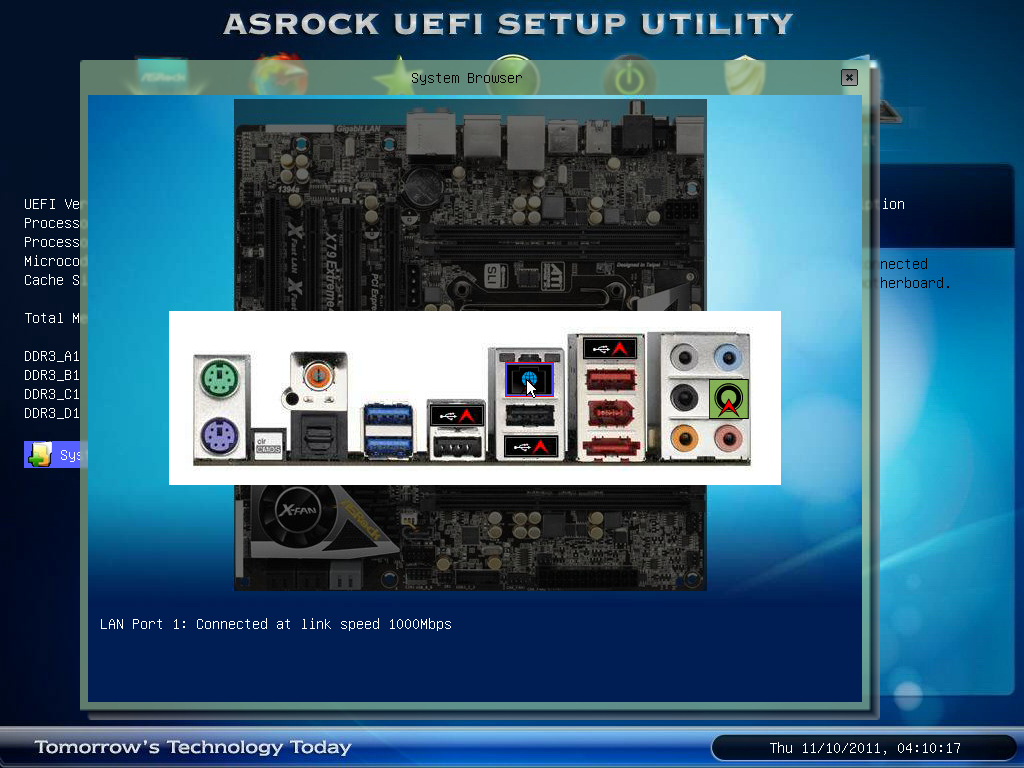

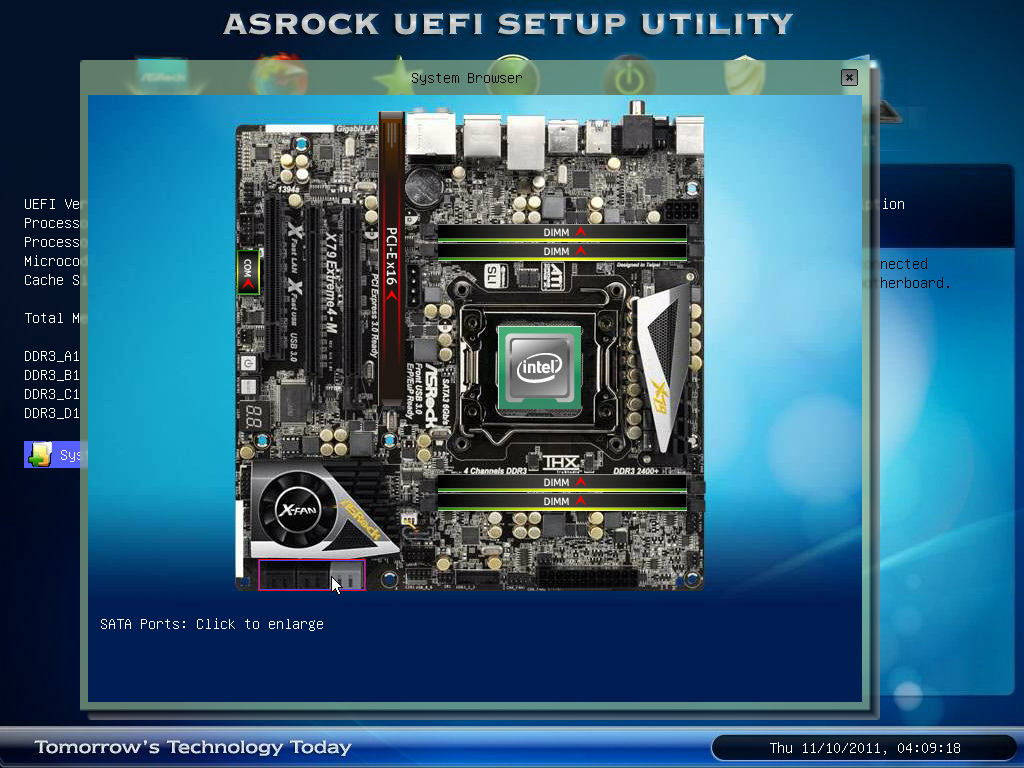

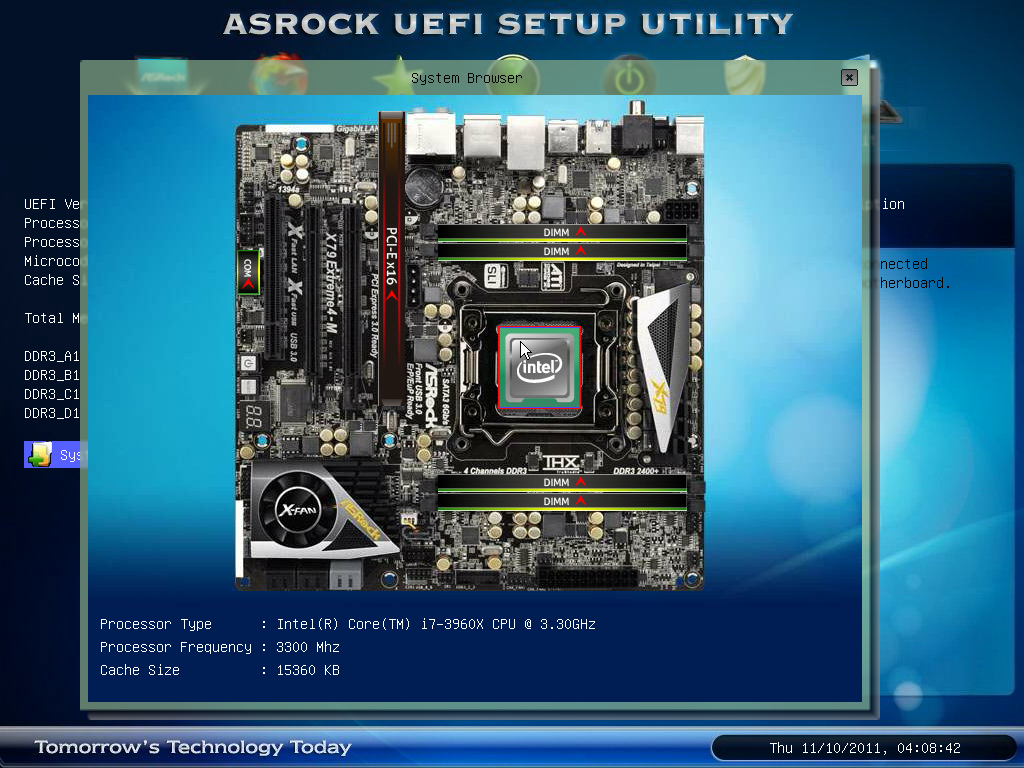

使用滑鼠將游標移至插槽位置上上可顯示該插槽上的元件連接概況與詳細資訊
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-03.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-04.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-05.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-06.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-07.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-08.jpg
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-09.jpg

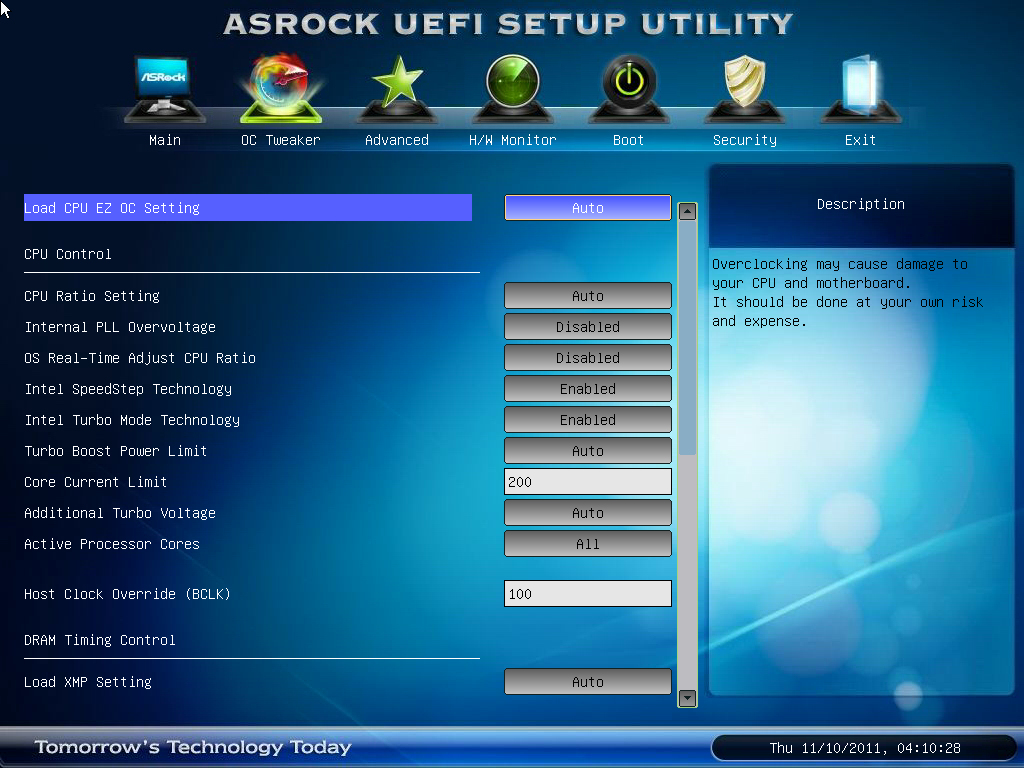

超頻選單
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-10.jpg

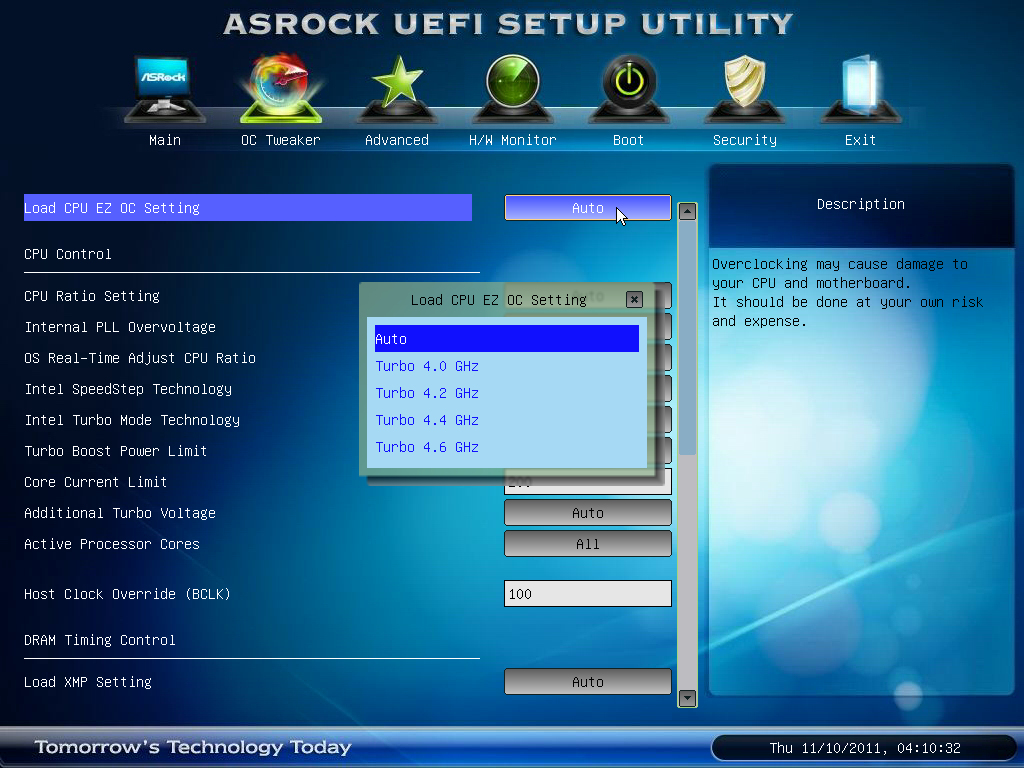

ASRock還是提供了EZ OC簡易超頻的選項
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-11.jpg

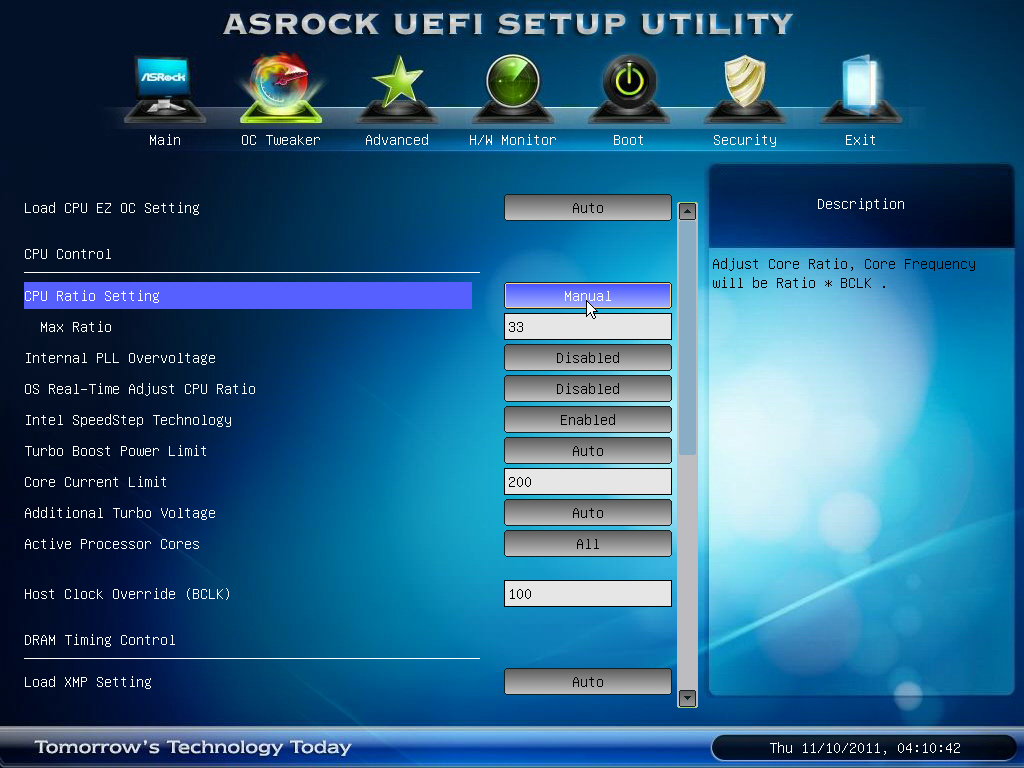

手動設定CPU倍頻及供電參數
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-12.jpg
記憶體XMP選項
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-13.jpg

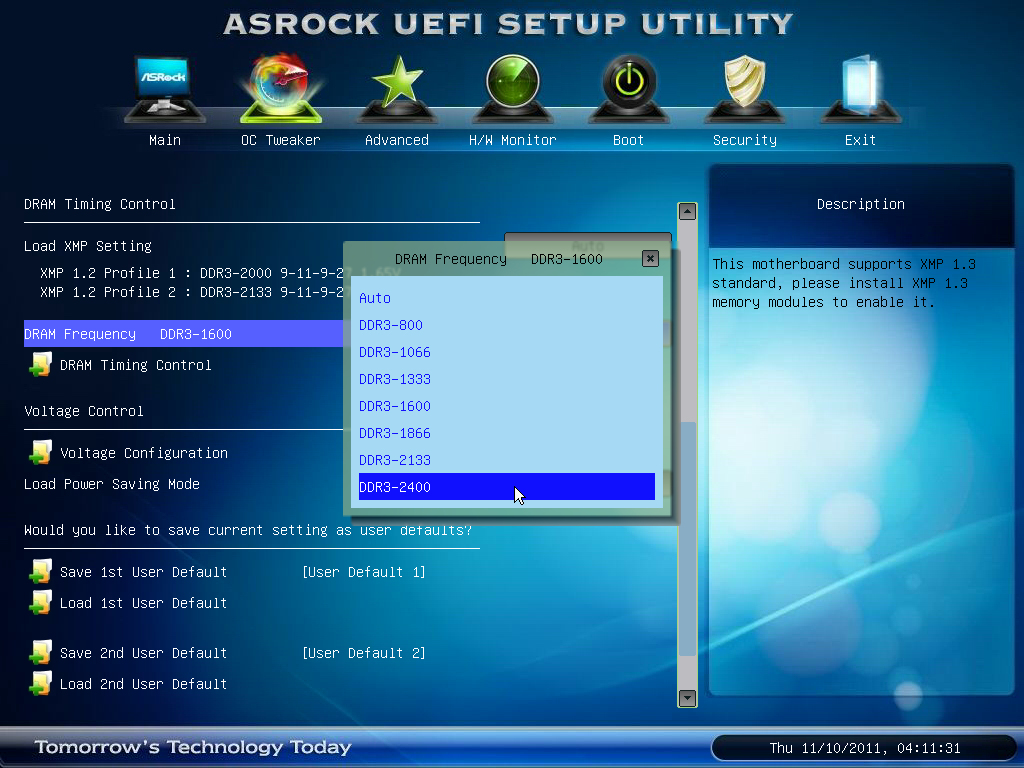

也可以自行設定記憶體時脈與延遲參數
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-14.jpg

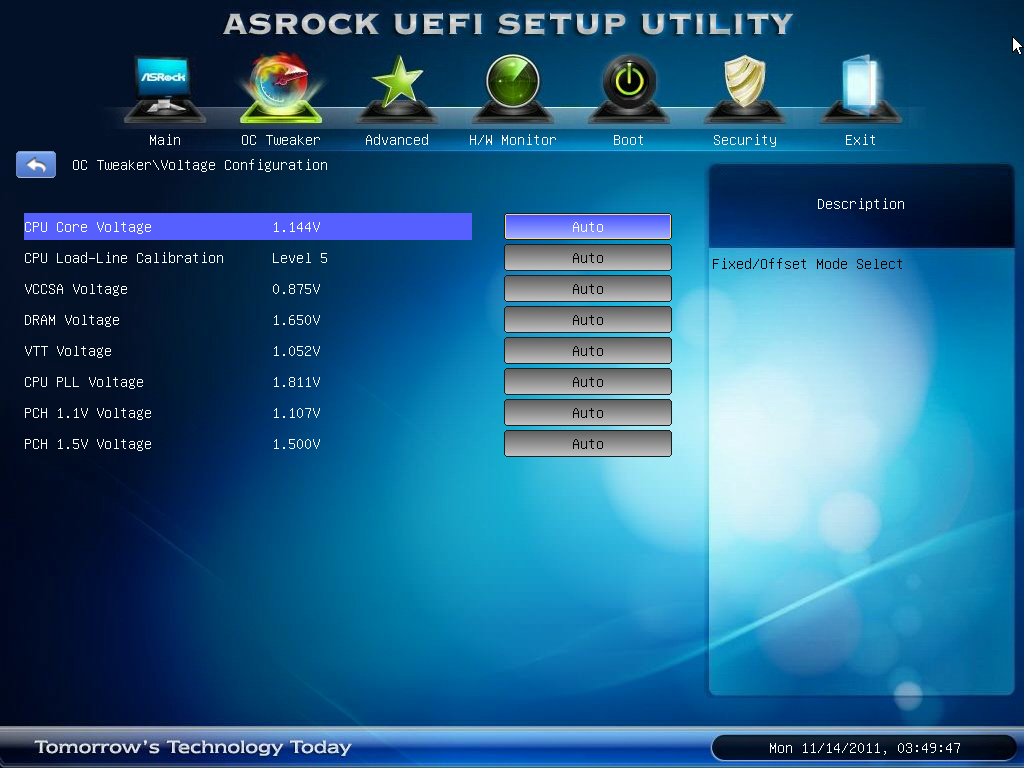

電壓調整選單
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-15.jpg

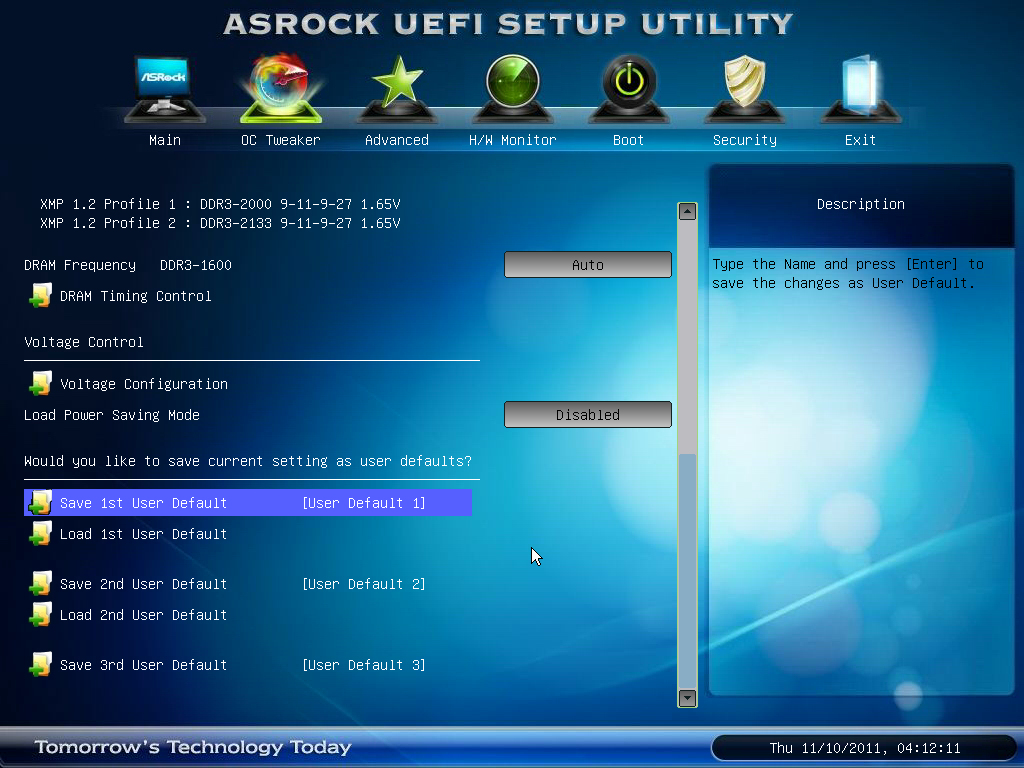

3組BIOS設定值儲存區
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-16.jpg

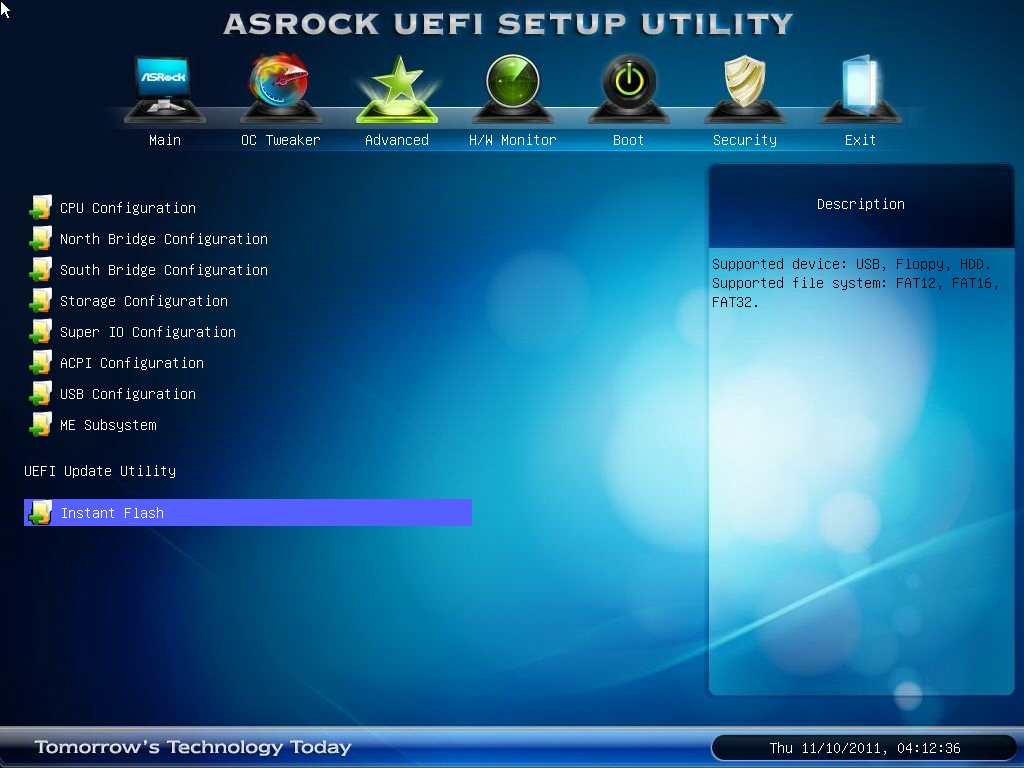

進階選單
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-17.jpg
下方有BIOS快速更新的選項

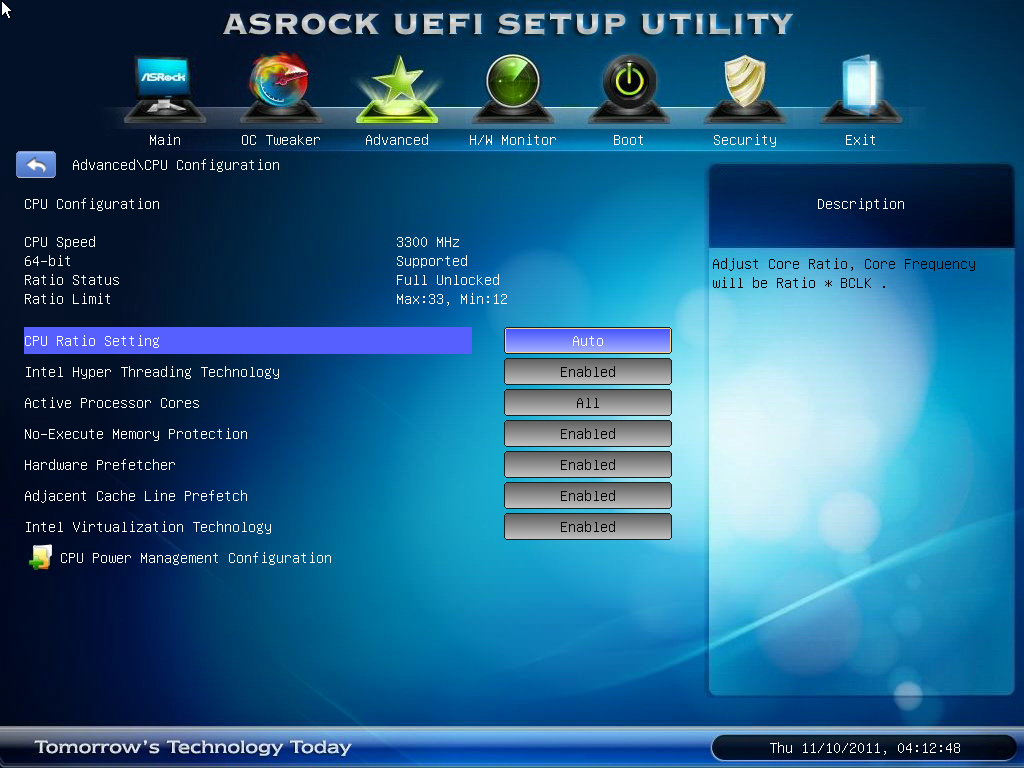

CPU參數設定
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-18.jpg

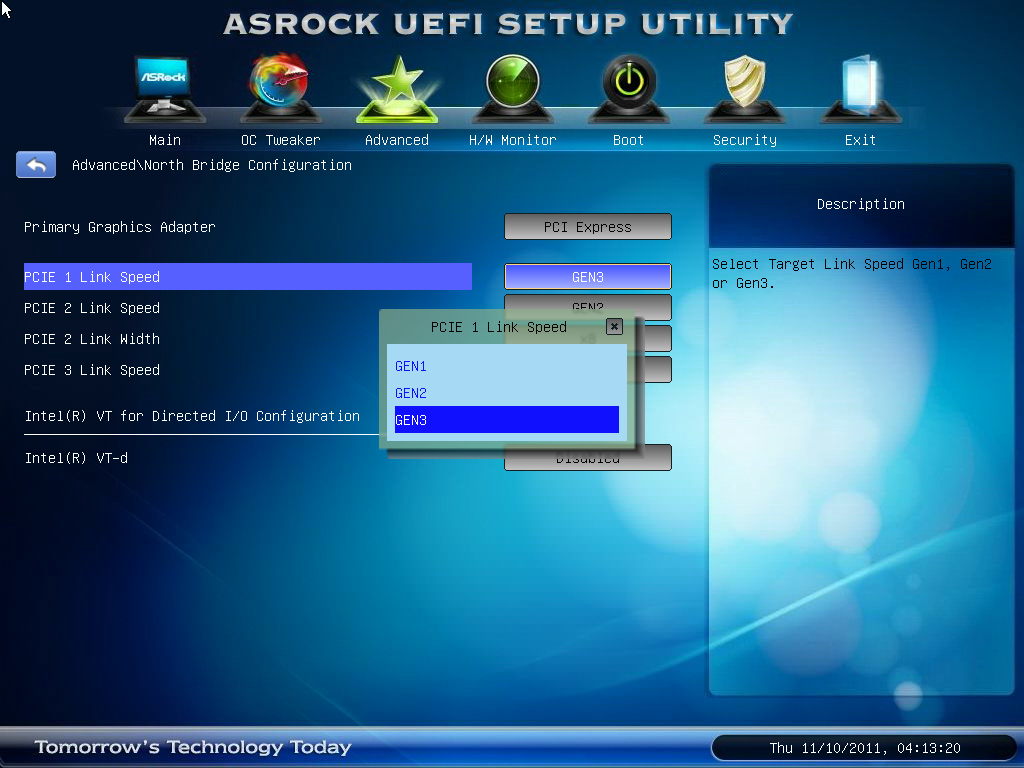

北橋晶片(包含在CPU內部)參數設定
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-19.jpg

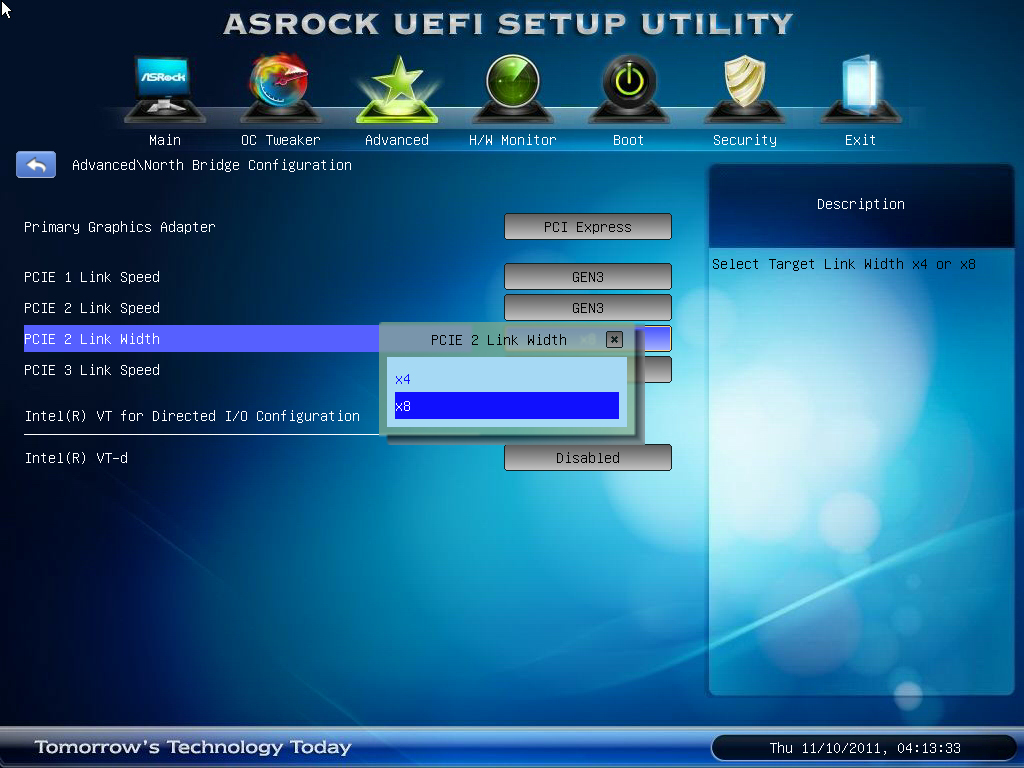

可設定PCI-E通道的頻寬
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-20.jpg

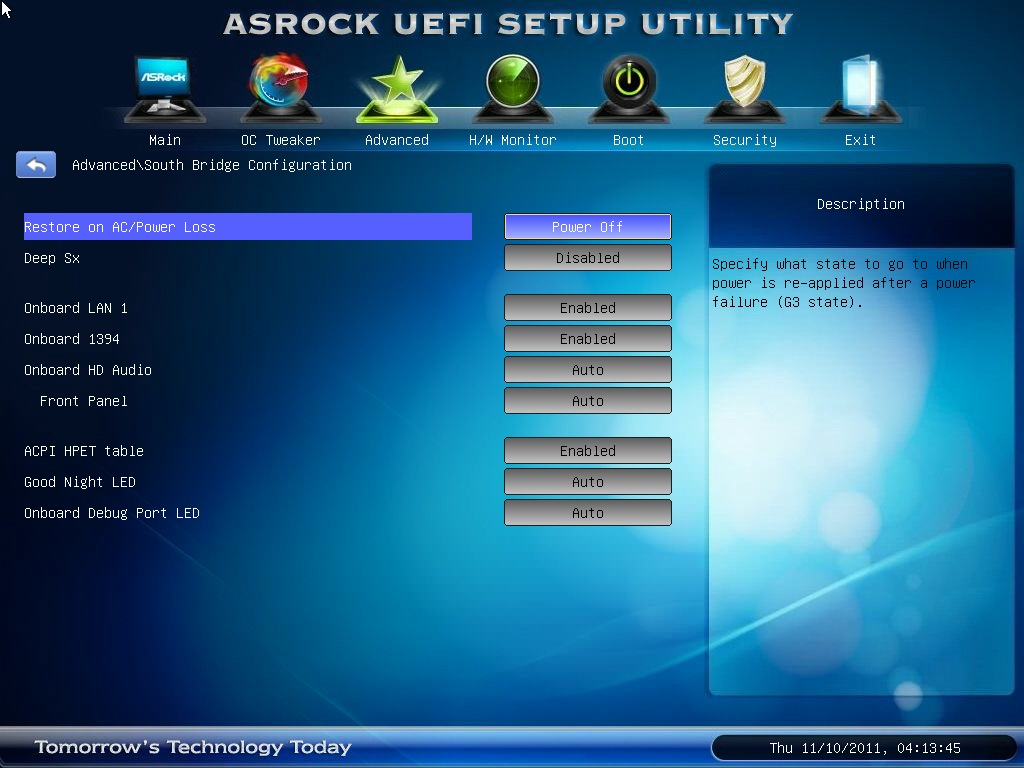

南橋晶片參數設定
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-21.jpg

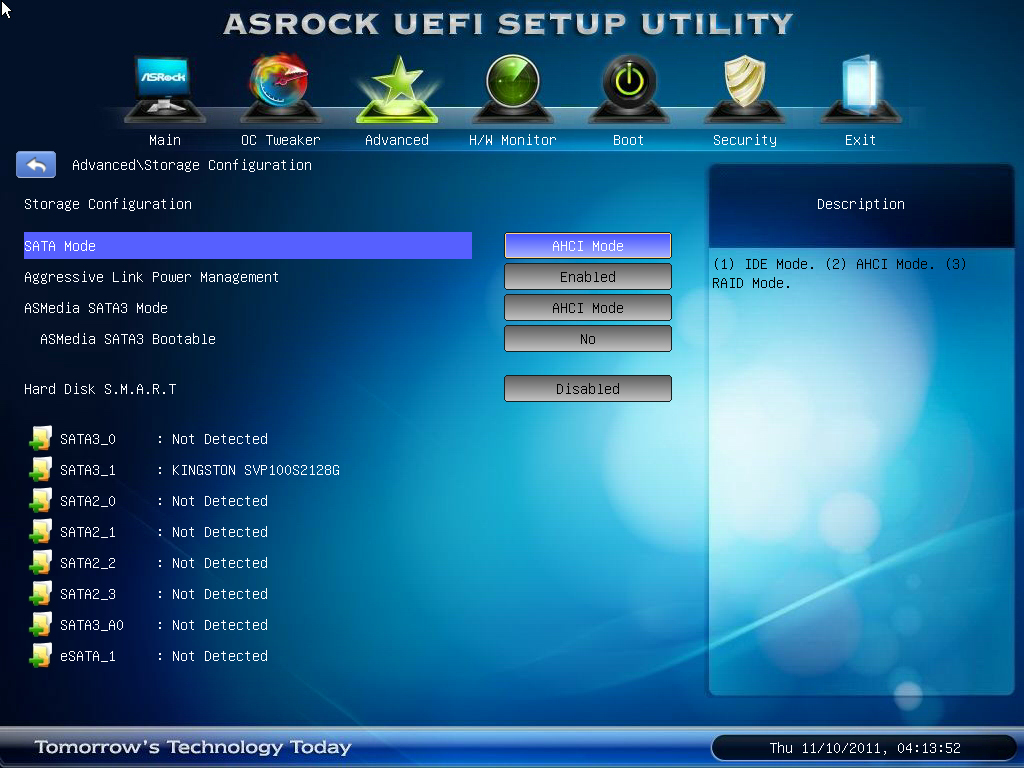

儲存裝置選單
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-22.jpg

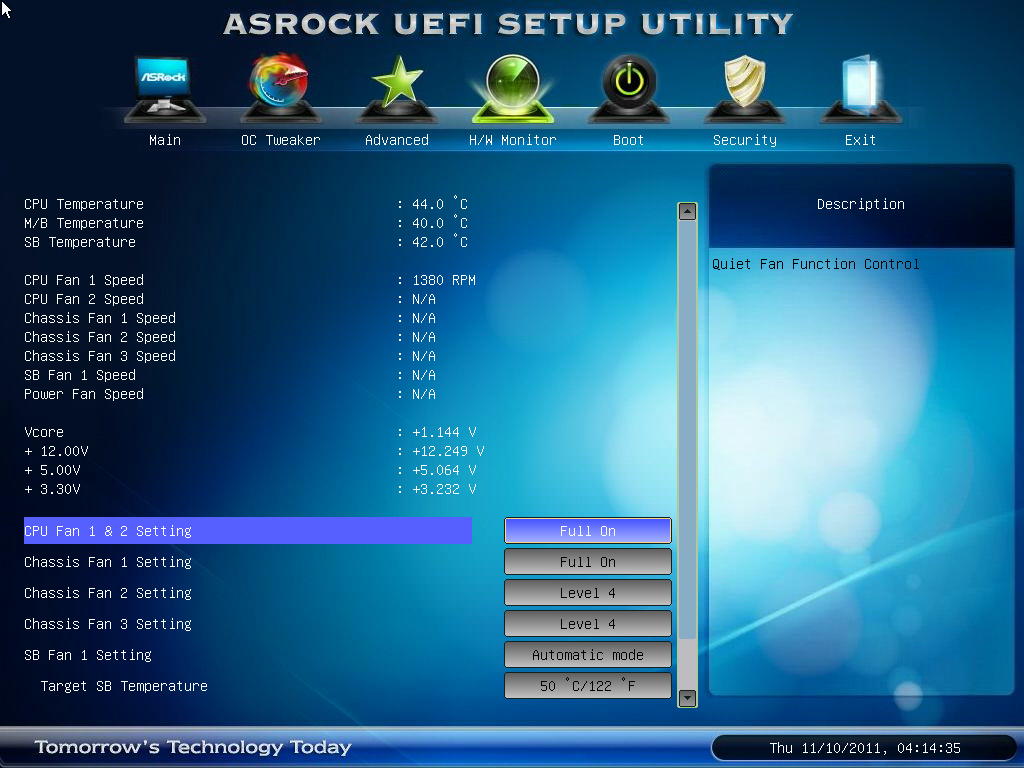

硬體環境監控頁面
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-23.jpg

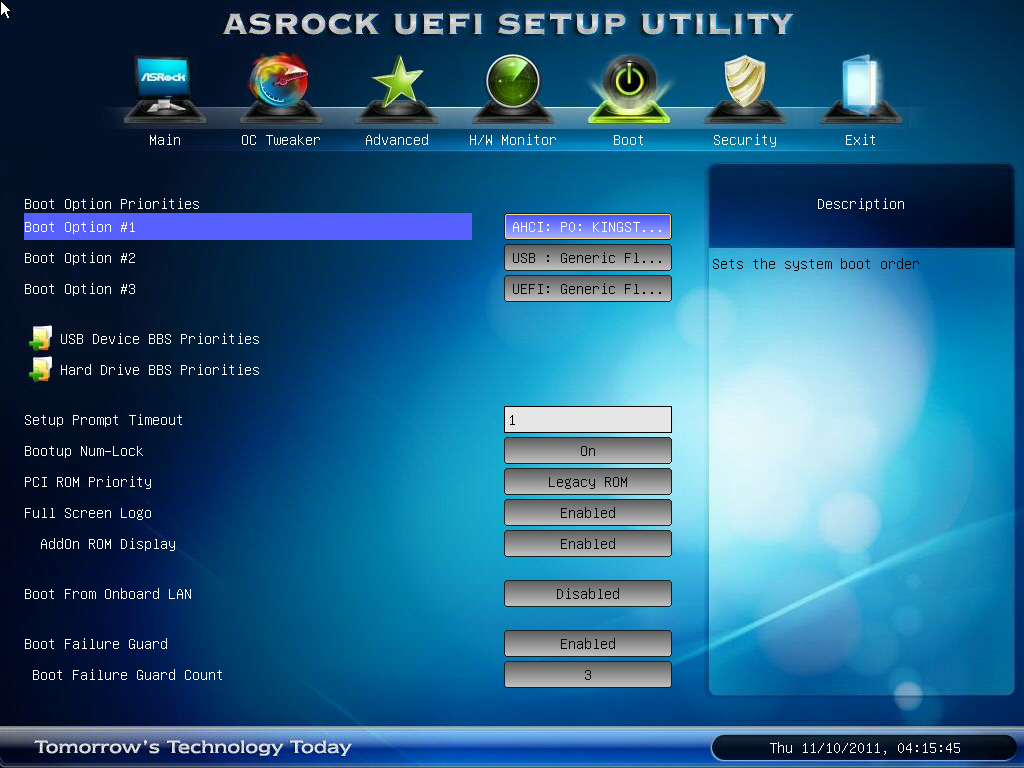

開機選單
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/BIOS-24.jpg
測試平台與環境
CPU: Intel Core i7-3960X
Cooler: Antec KUHLER H2O 920
Thermal Compound: Antec Formula 7
MB: ASRock X79 Extreme4-M
RAM: Kingston HyperX Genesis DDR3-1600 16GB(4GB*4)Kit
Graphic: ASUS ENGTX580
Storage: Kingston SSD Now V+100 128GB
PSU: Antec HCP-1200W
Chassis: CoolerMaster Test Bench
Monitor: Dell U2410
性能實測
CPUID資訊
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/AIDA64-CPUID.png
記憶體頻寬測試
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/AIDA64-Memory.png
Cinebench 11.5多執行緒圖形渲染
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/Cinebench.png
3DMark Vantage P Score
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/3DMarkVantageP.png
PCMark7
http://picx.xfastest.com/elvis/MB/ASRock/X79-Extreme4-M/PCMark7.png
參考一下XF於今年初針對LGA 1366/1156/1155三種不同平台性能的測試比較
3DMarkVantage Performance Score 3D性能測試
http://pic.xfastest.com/elvis/Review/Sandy-Bench/3DMark.jpg
Cinebench 多核心圖形渲染測試
http://pic.xfastest.com/elvis/Review/Sandy-Bench/CINEBENCH.jpg
AIDA64 記憶體頻寬測試
http://pic.xfastest.com/elvis/Review/Sandy-Bench/AIDA64.jpg
--
--
