華碩這命名為劍齒虎(Sabertooth)的主機板，主要訴求就在在高耐用度。
大量採用穩定的軍規級用料，並經過嚴苛的環境測試。
在此次Intel X79主機板中ASUS的SABERTOOTH也沒缺席。

包裝與配件
http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-01.jpg
▲ASUS SABERTOOTH 主機板包裝

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-02.jpg
▲背面為規格標示與特色說明

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-03.jpg
▲包裝盒側邊都很有一體性

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-04.jpg
▲掀開上蓋，內部有更多的特色功能介紹

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-05.jpg
▲內部雙層盒

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-06.jpg
▲軍規料件證書、5年保固說明書，還有"TUF Inside"貼紙

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-07.jpg
▲滿滿的配件

外觀與用料
http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-08.jpg
▲主機板正面全貌，迷彩式的配色

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-09.jpg
▲CPU Socket保護說明

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-10.jpg
▲

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-11.jpg
▲CPU供電區用料

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-12.jpg
▲使用EPS 8 pin供電

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-13.jpg
▲I/O Port有保留一個區塊提供MOSFET的散熱鰭片風扇排風使用

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-14.jpg
▲預設是沒裝風扇的

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-15.jpg
▲風扇安裝示意

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-16.jpg
▲擴充卡插槽有2組PCI-E x16、2組PCI-E x1、1組PCI-E x8(可安裝x16的擴充卡)、1組PCI

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-17.jpg
▲內接裝置插槽

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-18.jpg
▲除了X79原生的2個SATA 6Gb/s與4個SATA 3Gb/s Port之外，
SABERTOOTH X79額外提供2個SATA 6Gb/s Port，並支援SSD Caching

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-19.jpg
▲內接式USB 3.0插座位於ATX電源插座旁

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-20.jpg
▲主機板背面

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-21.jpg
▲CPU Socket絕緣墊片

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-22.jpg
▲解開Thermal Armor可見熱導管與鰭片

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-23.jpg
http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-24.jpg
▲MOSFET散熱片表層經過CeraM!X技術處理，粗糙的觸感其實是為了增加散熱面積

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-25.jpg
▲南橋PCH晶片的散熱片有附上風扇

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-26.jpg
▲使用4 Pin供電

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-27.jpg
▲散熱接觸面

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-28.jpg
▲全部脫光光

http://picx.xfastest.com/XF/MB/ASUS/TUF_X79/TUF-X79-29.jpg
▲晶片用料特寫

測試平台與環境
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/Platform.jpg
CPU: Intel Core i7-3960X
Cooler: Antec KUHLER H2O 920
Thermal Compound: Antec Formula 7
MB: ASUS SABERTOOTH X79
RAM: OCZ DDR3 PC3-12800 Platinum Edition 2GB*4 @ 1600MHz 7-7-7-21
Graphic: ASUS ENGTX580
Storage: Kingston SSD Now V+100 128GB
PSU: Antec HCP-1200W
Chassis: CoolerMaster Test Bench
Monitor: Dell U2410

UEFI BIOS 畫面簡介
初始畫面為EZ Mode
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-01.jpg
適合一般使用者簡單的操控

可切換至Advance Mode
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-02.jpg

主選單 - 系統資訊
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-03.jpg

Ai Tweaker 超頻選單
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-04.jpg

記憶體時脈調整
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-05.jpg

這次Sandy Bridge-E多了可調整的Bit Clock除頻，
只要設為手動超頻，就會出現CPU Strap的調整選項
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-06.jpg

CPU Strap調整過後的記憶體時脈間距也會跟著變動
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-07.jpg

記憶體延遲參數設定
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-08.jpg

DIGI+電源控制
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-09.jpg

CPU效能設定
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-10.jpg

電壓調整
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-11.jpg

進階選單
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-12.jpg

CPU資訊及調整選項
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-13.jpg

PCI-E通道頻寬調整
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-14.jpg

SATA裝置選項
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-15.jpg

內建裝置選項
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-16.jpg

環境監控
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-17.jpg

每個風扇都可以調整轉速模式
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-18.jpg

開機選單
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-19.jpg

EZ Flash 2為BIOS更新模式，可直接讀取磁碟/隨身碟內的BIOS檔案進行升級
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-20.jpg

記憶體狀況監控可檢視是否有掉DIMM的現象
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-21.jpg

超頻設定儲存區
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-22.jpg
可儲存多達8種設定值

Marvell SATA 6Gb/s Port的加速選項
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/BIOS-23.jpg

性能實測

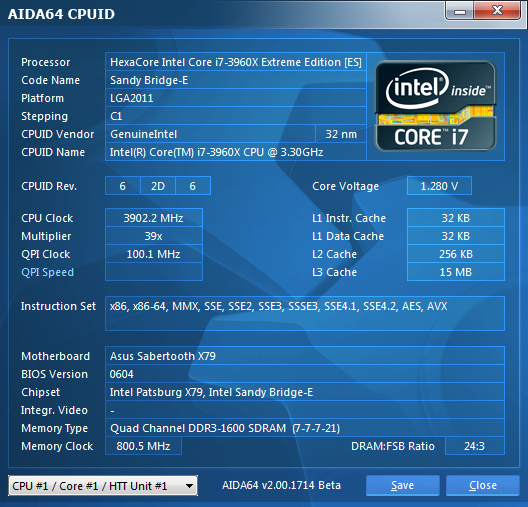

AIDA64 - CPUID
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/AIDA64-CPUID.png

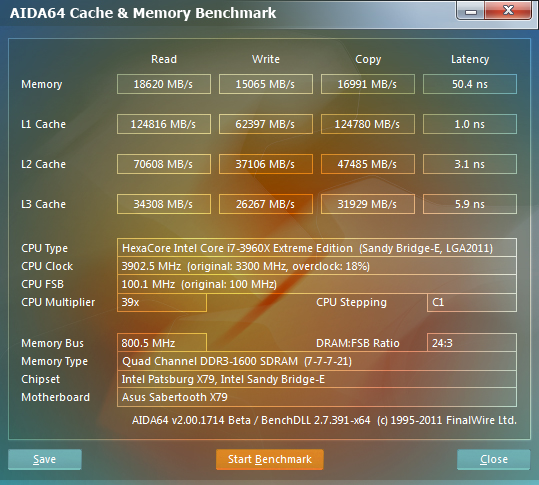

AIDA64 - 記憶體頻寬
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/AIDA64-Memory.png

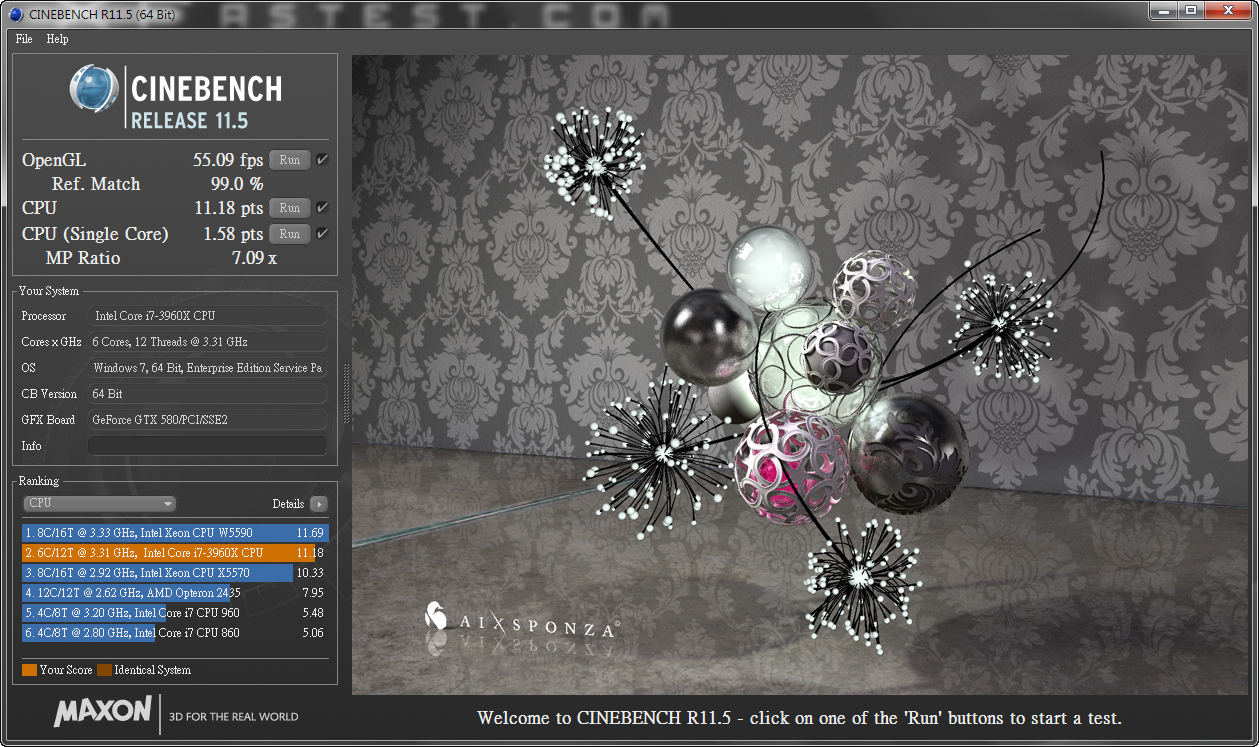

Cinebench 11.5 多執行緒圖形渲染
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/Cinebench.png

3DMark06 Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/3DMark06.png

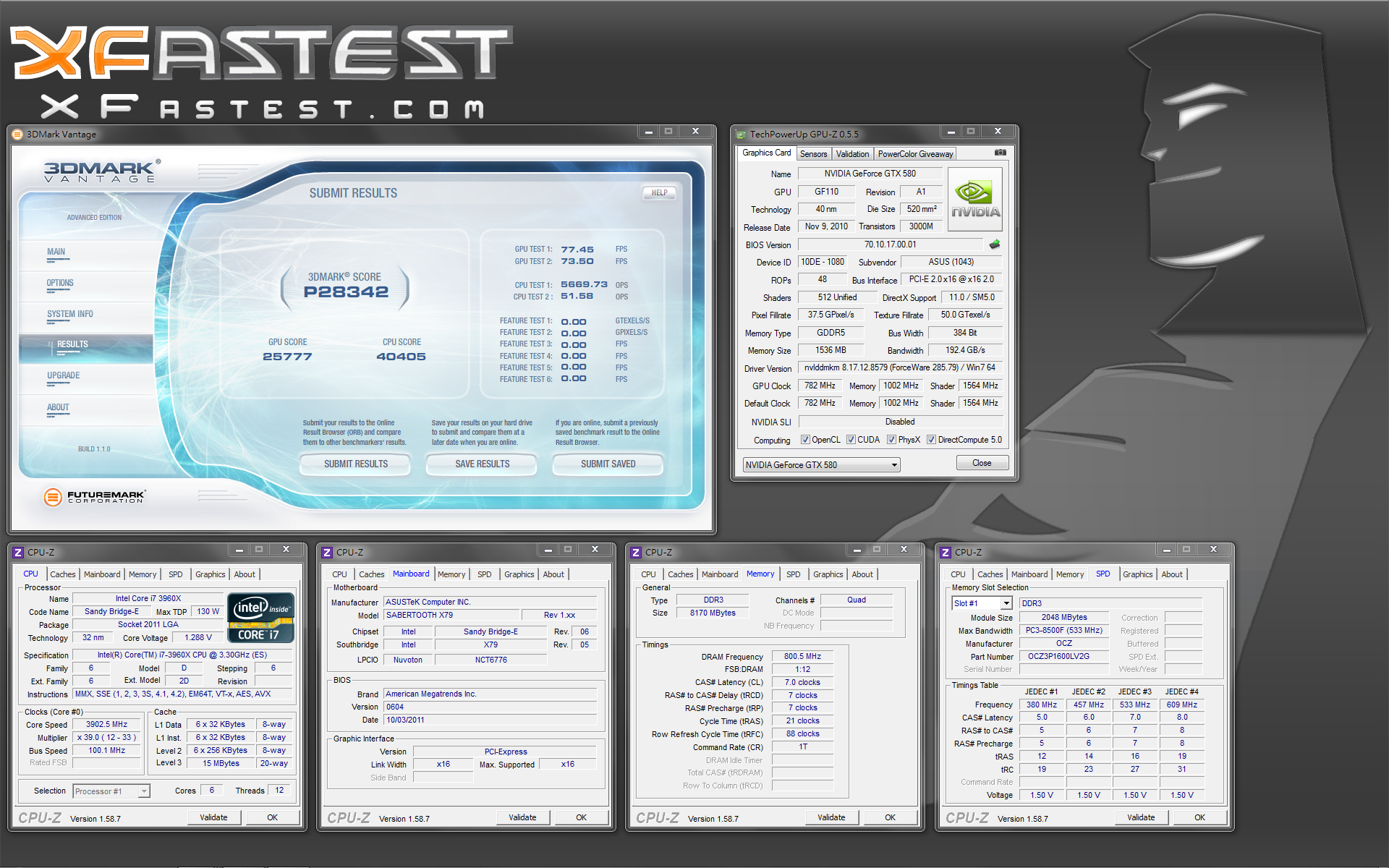

3DMark Vantage Performance Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/3DMarkVantageP.png

3DMark Vantage eXtreme Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/3DMarkVantageX.png

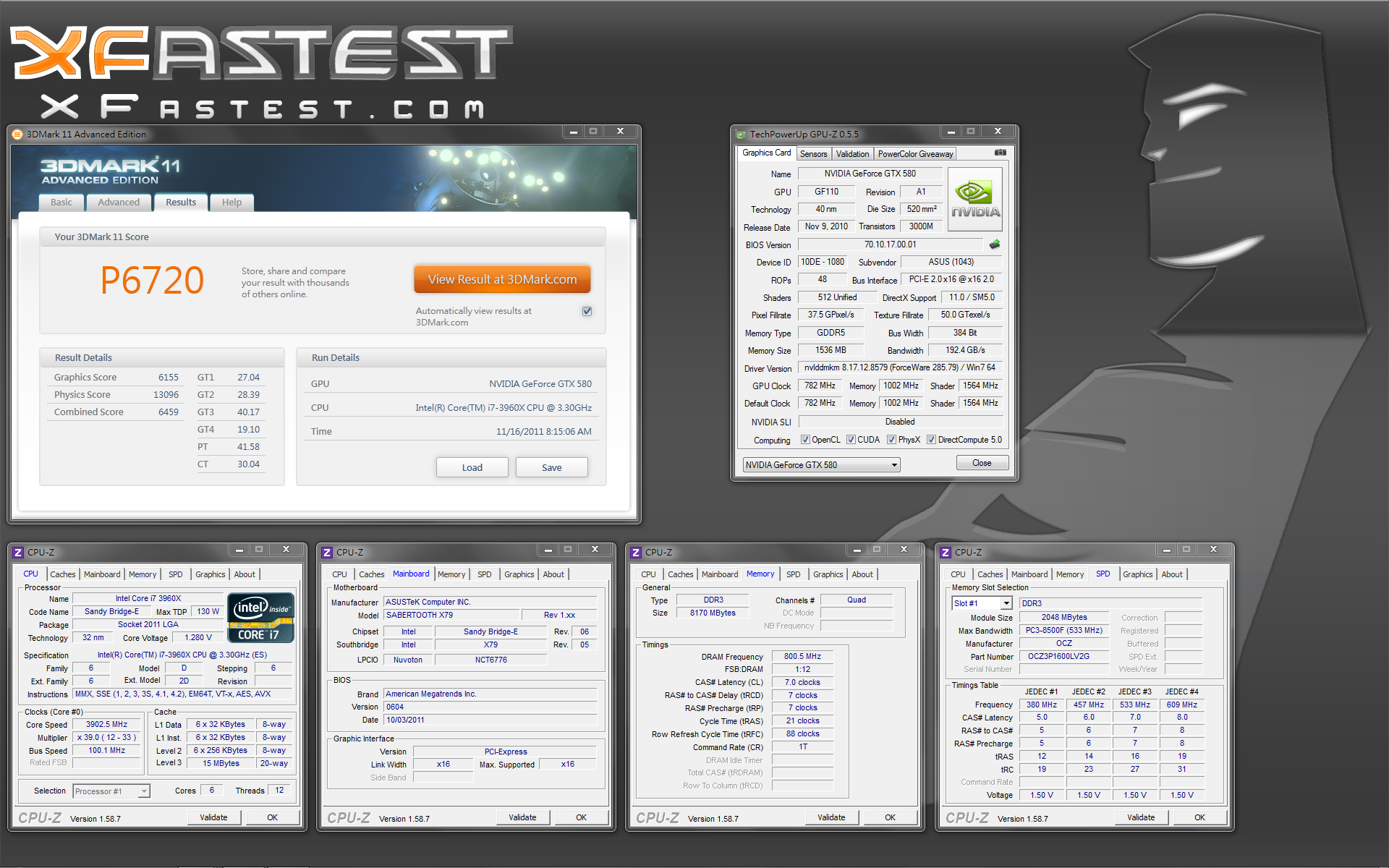

3DMark11 Performance Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/3DMark11P.png

3DMark11 eXtreme Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/3DMark11X.png

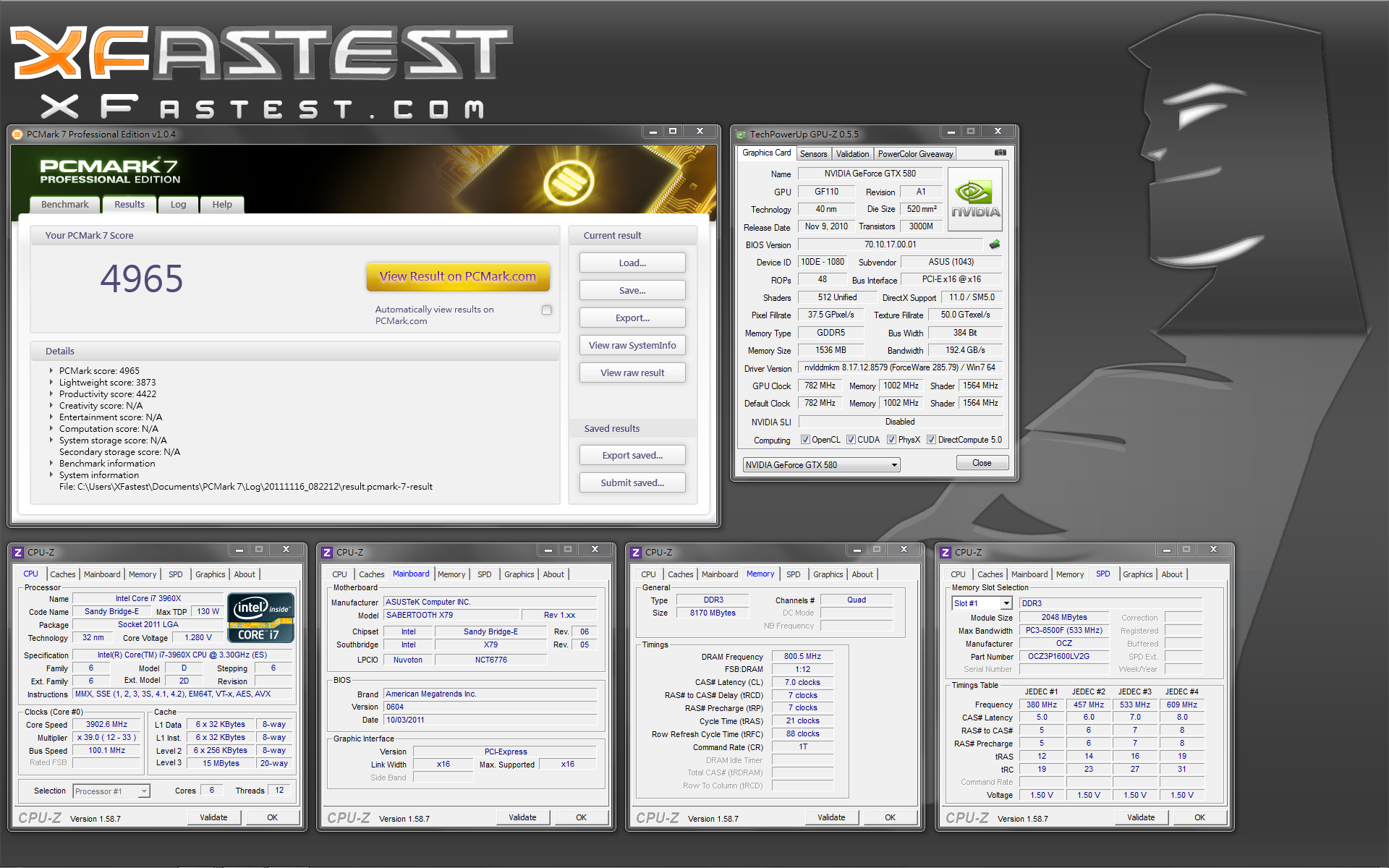

PCMark7 Score
http://picx.xfastest.com/elvis/MB/ASUS/SabertoothX79/PCMark7.png

小結
SABERTOOTH的使用者族群設定在對穩定性的要求非常高的工作站使用者，
使用軍規元件再搭配5年的優質保固，
ASUS SABERTOOTH X79絕對是Sandy Bridge-E架構平台的良伴!

--

--
